E32-DTU (868L20) Ebyte long range SX1276 LoRa 868mhz radio modem wireless data transceiver of 868M with standard RS232/RS485 connectors
[Frequency]：862~893MHz
[Power]：100mW
[Distance]：3km
[Interface]：RS232/RS485
[Weight]：127±5g
[Introduction]： E32-DTU (868L20) is wireless data transceiver of 868M with standard RS232/RS485 connectors. They are half-duplex. TX & RX modems with LoRa technology and transparent transmission mode. Voltage supply ranges from 8V to 28V, Working frequency: 862~893MHz (Default:868MHz).

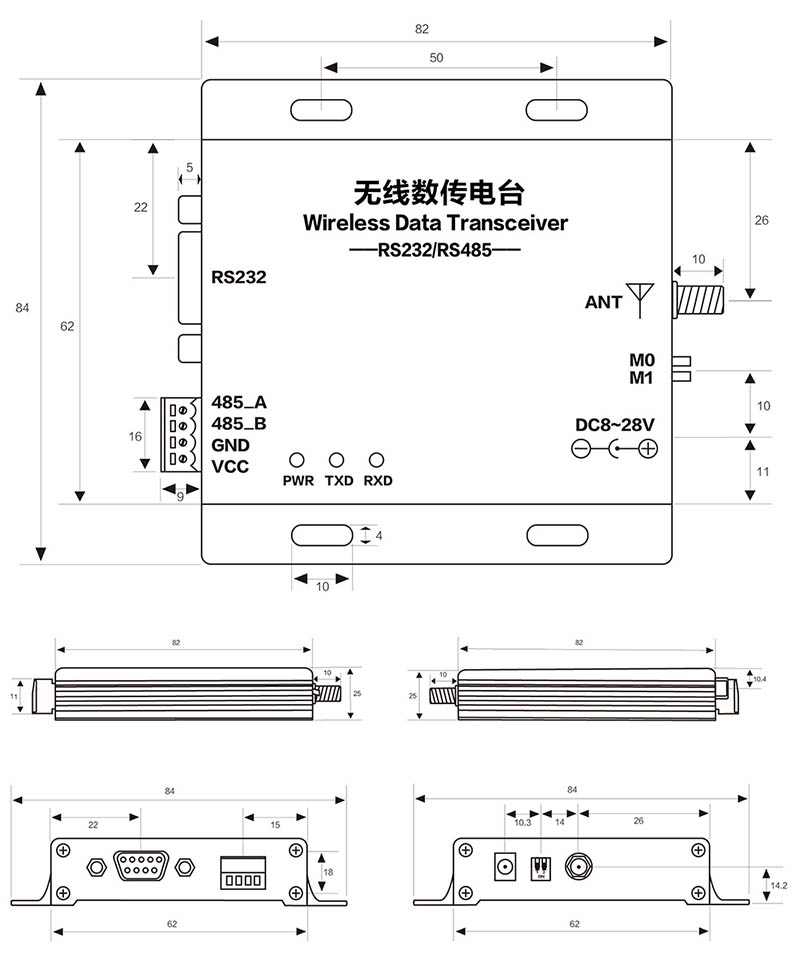

| Pin No. | Name | Function | Description |
|---|---|---|---|
| 1 | DB-9 female connector | RS-232 connector | Standard RS-232 connector |
| 2 | 3.81 wiring connector | RS-485, power connector | Standard RS-485 connector and line-pressing power source connector |
| 3 | PWR-LED | Power source indicator | Red, light on when power on |
| 4 | TXD-LED | TX indicator | Yellow, flicker when transmitting data |
| 5 | RXD-LED | RX indicator | Yellow, flicker when receiving data |
| 6 | DC power connector | Power source connector | Drop-in round hole, 5.5mm external diameter, 2.5mm internal diameter |
| 7 | Toggle switch | Toggle switch | Operation mode control |
| 8 | Antenna interface | SMA-K connector | External screw and inner hole, 10mm long, 50Ω characteristic impedance |
