Computer network is an indispensable part of our daily life, and Socket connection is an indispensable mechanism in network communication. In this article, we will introduce Socket connection and its importance to you through easy-to-understand and vivid language.

What is a Socket connection?

Socket is an intermediate software abstraction layer for communication between the application layer and the TCP/IP protocol cluster, and it is a set of interfaces.

In contrast, establishing a TCP connection requires the underlying IP protocol to address hosts on the network.

Socket connection is a communication mechanism in computer network, which allows two programs on different computers to communicate through the network. When using sockets for communication, one program acts as a client and the other acts as a server, and they transmit data by creating and using sockets. We can understand sockets as an interface for network communication, which provides a standard communication method that enables different programs to exchange data on the network.

HOT SEARCH :

• What is wireless communication network packet loss?

• Remote IO module wireless acquisition control industrial signal transmission analysis

• [Technology] How to choose NB-IOT and 4G wireless communication solutions?

• LoRa technology: low power consumption, long distance, anti-interference

• Wireless Communication: MIMO Technology

How sockets work

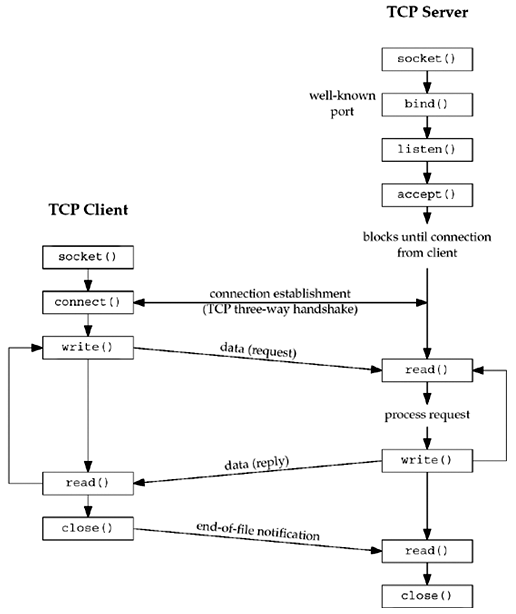

In a Socket connection, the client program will first send a connection request to the server, and the server will accept the connection request, and then communicate with the client through the socket. During communication, the client and server send and receive data through sockets. Once the communication is complete, the connection is disconnected and the socket is closed.

1. The use of sockets

The use of sockets is at the heart of Socket connections. When using sockets for communication, we need to specify some parameters of the socket, such as IP address, port number, protocol, and so on. These parameters determine how the socket is used, and they need to be negotiated between the client and server to ensure that communication can go smoothly.

In a Socket connection, the sockets used by the client and server may be different. In the client, we need to create a socket and specify the IP address and port number of the connection target, and then send a connection request to the server. On the server side, we need to create a socket and bind it to a specified port number, and then wait for the connection request from the client.

2. Socket protocol

The protocol of the socket is also an important part of the Socket connection. Different protocols have different effects on the way and efficiency of data transmission. In Socket connection, the common protocols are TCP and UDP.

The TCP protocol is a reliable protocol that guarantees that data will not be lost or damaged during transmission. The TCP protocol ensures data integrity and reliability through steps such as connection establishment, data transmission, and connection release. The TCP protocol is suitable for occasions that require data transmission reliability, such as file transfer, web browsing, etc.

UDP protocol is an unreliable protocol, it does not guarantee the reliability of data transmission. The UDP protocol transfers faster than TCP, but data may be lost or corrupted during transfer. The UDP protocol is suitable for real-time communication, such as the transmission of video and audio streams.

Socket connection application

Socket connections are widely used in computer networks, and they are used to implement various network applications. Here are some common applications:

Network games: Multiplayer games in network games need to realize real-time communication between players through Socket connection.

Video and audio streams: The transmission of video and audio streams requires real-time data transmission through Socket connections.

File transfer: Through Socket connection, file upload and download can be realized.

Network chat: through Socket connection, users can chat in real time and transmit text, pictures, audio and other information.

Remote control: Through Socket connection, users can control remote devices, such as remote desktop, remote console, etc.

Summarize

(1) In computer network, Socket connection is an important communication mechanism. It allows two programs to communicate in real time on different computers, and realizes data transmission through the creation and use of sockets.

(2) In the Socket connection, we need to specify some parameters of the socket, such as IP address, port number, protocol, etc., to ensure that the communication can proceed smoothly.

(3) There are two common protocols, TCP and UDP, which differ in the way and efficiency of data transmission.

(4) Socket connection is widely used in online games, video and audio streaming, file transfer, network chat, remote control, etc.
