Introduction:
With the rapid development of the Internet of Things (IoT), finding suitable solutions for reliable and long-distance communication is becoming more and more important. Traditional wireless communication technologies have limitations in coverage and power consumption, and LoRaWAN and LoRa technology have become key tools to address these challenges.

Table of Contents

LoRaWAN module and LoRa module

Overview LoRaWAN Module VS  LoRa Module

LoRaWAN is a communication protocol based on LoRa technology, designed for Low Power Wide Area Network (LPWAN) applications.

Related article :

Features of the LoRaWAN module: The LoRaWAN module provides a complete LoRaWAN protocol stack, supporting long-distance communication, low power consumption, and large-scale connections.

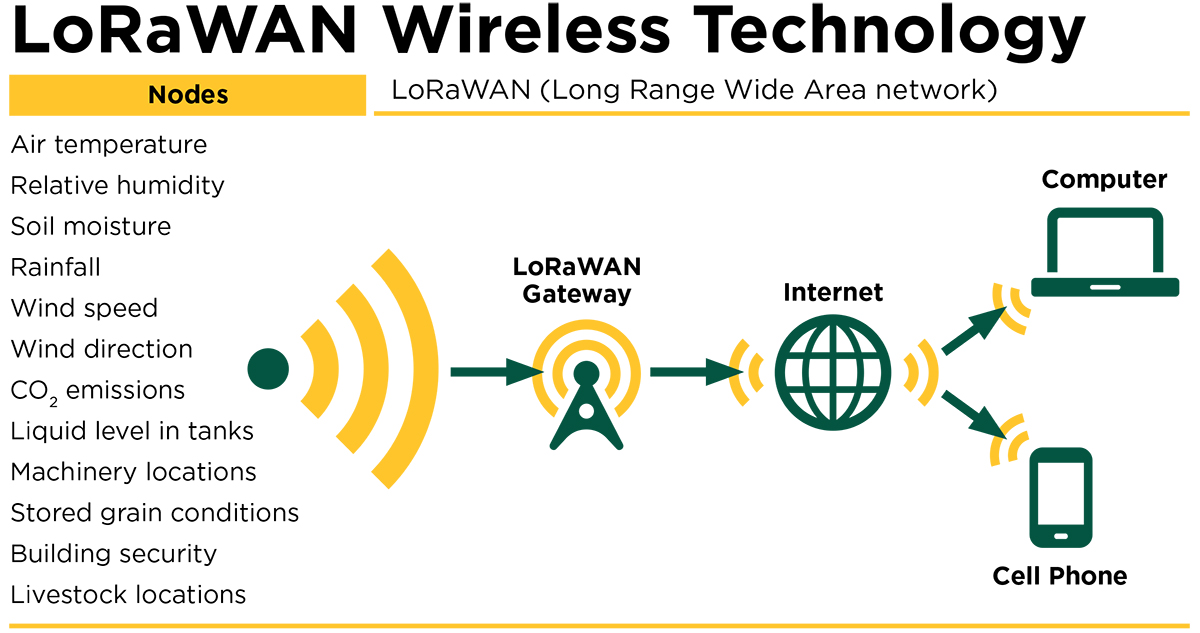

Build a LoRaWAN network: Introduce the communication process between LoRaWAN sensors, gateways and cloud platforms, and the role of the LoRaWAN module in this process.

LoRa is a modulation technology that enables wireless communication over long distances, low power consumption, and anti-interference. Designed for long-distance low-speed data communication with sensors and actuators for M2M and IoT applications. It uses unreserved radio spectrum in the Industrial, Scientific, and Medical (ISM) band to enable long-range, low-power communication between remote sensors and network connectivity gateways. The protocol uses wideband spread spectrum technology. Its FM signal uses gain coding to increase receiver sensitivity.

LoRa spread spectrum technology

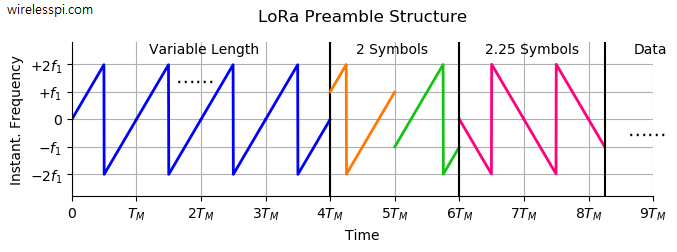

LoRa (Long Range) is a wireless communication technology using spread spectrum technology, designed to achieve long-distance communication connections. It is based on the Chirp Spread Spectrum (CSS) modulation method, which converts the digital signal into a continuous frequency sweep signal.

The key features of LoRa spread spectrum technology are long-distance communication capability, low power consumption design and strong anti-interference performance. By extending the signal in the frequency domain, LoRa technology can achieve a communication distance of more than 10 kilometers in an outdoor environment, and can also cover several kilometers in an urban environment.

The low-power design of LoRa spread spectrum technology makes it ideal for long-running and battery-powered applications. The low-speed transmission and low-power transmission of the spread spectrum signal effectively reduces the energy consumption of the device and prolongs the battery life.

In addition, LoRa technology adopts CSS modulation method, which has excellent anti-interference performance. CSS modulation makes LoRa devices more robust in the face of narrowband interference sources and can maintain a stable communication connection.

LoRa spread spectrum technology has a wide range of application scenarios in IoT applications, such as smart cities, agricultural monitoring, environmental monitoring, industrial automation, etc. It provides reliable long-range communication capability for these applications, while meeting the requirements of low power consumption, long-distance communication and anti-jamming.

How the LoRa module works

Modulation and demodulation

Sending end: The sending end of the LoRa module modulates the data to be transmitted. The modulation process uses Chirp Spread Spectrum (CSS) technology to convert the digital signal into a wideband, low-power continuous frequency spread signal. This modulation method enables the signal to be transmitted in a low signal-to-noise ratio environment and has immunity to interference.

Receiver: The receiver of the LoRa module converts the received LoRa signal into original digital data through the demodulation process. The demodulation process involves key steps such as frequency offset and clock synchronization to recover the original data.

Channel and Bandwidth

The LoRa module works in the specified frequency band and uses a certain bandwidth for communication. Common LoRa bandwidth options include 125 kHz, 250 kHz, and 500 kHz, with narrower bandwidths typically used for long-distance communications.
Channel refers to a specific communication channel within a given frequency band and bandwidth. LoRa modules can be configured to use different channels in order to communicate between multiple devices to avoid mutual interference.

Code rate and spreading factor

The code rate of the LoRa module defines the rate of data transmission. A higher bit rate means faster data transmission speed, but usually at the expense of communication distance and anti-interference performance.
The spreading factor refers to the spreading factor used in CSS technology. A higher spreading factor can provide a longer communication distance, but the communication rate will be reduced accordingly.

Receive sensitivity and transmit power

The receiving sensitivity of the LoRa module refers to how low the signal power level it can still correctly demodulate and receive data. Higher receiving sensitivity can provide better receiving range and signal acquisition ability.

Transmission power refers to the transmission power level used by the LoRa module when sending data. Usually, the transmission power can be adjusted according to specific application requirements to balance communication distance and power consumption.

Differences between LoRaWAN module and LoRa module

Both the LoRaWAN module and the LoRa module are wireless communication modules based on LoRa technology, but they have some differences in function and usage.

Functions and communication protocols:

LoRaWAN module: The LoRaWAN module is specially designed for the LoRaWAN communication protocol. It implements a complete LoRaWAN protocol stack, including physical layer (LoRa modem), MAC layer, network layer and application layer. The LoRaWAN module can be directly connected to the LoRaWAN network server to realize communication and data transmission with the cloud.
LoRa module: The LoRa module provides the LoRa physical layer communication function, but does not directly support the LoRaWAN protocol. It is often used to build custom wireless communication solutions, such as peer-to-peer communication or specific IoT applications. The LoRa module requires additional software and protocol stacks to implement the LoRaWAN communication protocol.

Refer article : Teach you how to build a LoRaWAN automatic acquisition system

Application Range and Compatibility:

LoRaWAN module: The LoRaWAN module focuses on communicating with the LoRaWAN network and is suitable for building IoT applications. They are compatible with LoRaWAN network servers and gateways and can be directly connected into existing LoRaWAN network architectures.
LoRa module: LoRa module can be widely used in various application scenarios, including applications other than LoRaWAN. They can communicate with other LoRa modules or custom devices, but require additional development and configuration to implement specific communication protocols and data transfer methods.

Configuration and usage complexity:

LoRaWAN module: LoRaWAN modules usually have high configuration and use complexity, because they need to configure LoRaWAN network parameters, device addresses, application keys and other information to connect and communicate with LoRaWAN network servers.
LoRa module: The LoRa module is relatively simple and easy to use, usually only need to set the basic communication parameters, such as frequency, power, etc. They are better suited for rapid prototyping and simple peer-to-peer communication scenarios.

Community and Ecosystem Support:

LoRaWAN module: Since LoRaWAN is an open and standardized IoT communication protocol, the LoRaWAN module is widely supported by the community. There are many LoRaWAN network service providers, developer communities and resources available to support the development and application of LoRaWAN modules.

LoRa module: Compared with the LoRaWAN module, the LoRa module has relatively less ecosystem and community support. However, the LoRa technology itself is open, and developers can customize and expand the functions of the LoRa module.

Advantages of LoRaWAN and LoRa Modules

Long-distance communication capability: LoRaWAN and LoRa modules can achieve communication within a range of several kilometers, breaking through the limitations of traditional wireless communication.

Low power consumption design: LoRaWAN and LoRa modules are designed with low power consumption to prolong device battery life, suitable for long-term deployment and remote areas.

Strong anti-interference: LoRa technology has excellent performance in spectrum utilization and anti-interference, and can maintain stable communication in noisy wireless environments.

Network scalability: LoRaWAN and LoRa modules support large-scale connections, suitable for application scenarios that cover a wide area and connect a large number of devices.

The reason why LoRaWAN can become an LPWAN communication protocol is because it has long-distance communication capabilities, low power consumption design, large-scale connection capabilities, anti-interference performance, and open standards and ecosystem support. These features make LoRaWAN ideal for low-power, long-range communication needs in IoT applications.

Application Cases of LoRaWAN and LoRa Modules
Logistics and supply chain management: Use LoRaWAN and LoRa modules to track and monitor goods in real time, improving logistics efficiency and safety.
Environmental monitoring and smart agriculture: Collect soil moisture and meteorological data through LoRaWAN and LoRa modules to achieve precise agricultural management and environmental monitoring.
Urban infrastructure management: Use LoRaWAN and LoRa modules to monitor and control urban infrastructure, such as street lights, parking spaces, and trash cans, to achieve smart city management.

SUMMARY
As the key technology of IoT communication, LoRaWAN and LoRa module provide the ability of long-distance communication, low power consumption and large-scale connection. Their strength lies in solving the challenges faced by traditional wireless communication technologies and providing a powerful solution for various IoT applications. With the continuous development of the Internet of Things, LoRaWAN and LoRa modules will play an important role in more fields, creating a smarter, more efficient and sustainable future.
