Ebyte SPI CC110 Sensor Wireless Long Distance Transmitter Receiver Module
[IC]：CC1101
[Frequency]：850~880.5MHz
[Power]：10dBm
[Distance]：1.0km
[Interface]：SPI
[Weight]：0.5±0.1g
[Introduction]：E07-868MS10, based on CC1101 of TI, is a SMD wireless transceiver module operating at 868MHz and supporting low power consumption development.

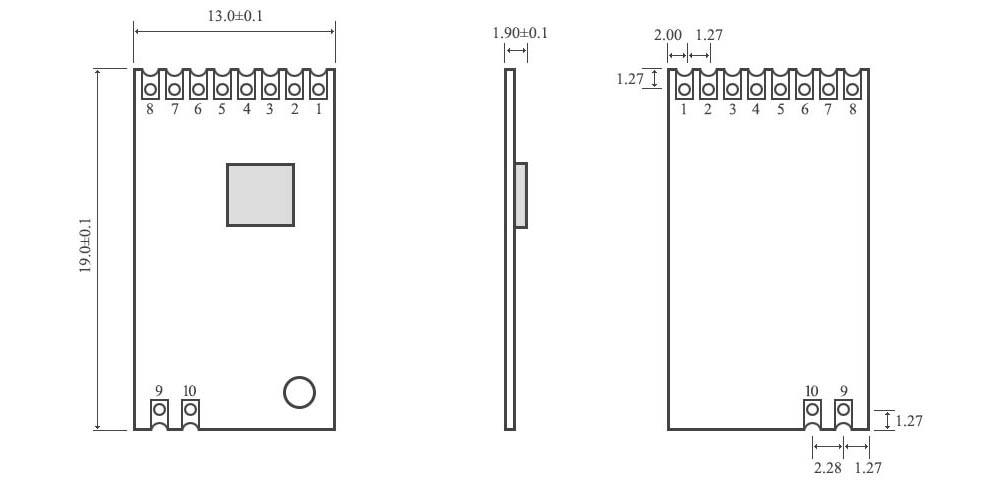

| Pin No | Pin item | Pin direction | Pin application |
|---|---|---|---|
| 1 | VCC | - | Power supply 1.8V ~ 3.6VDC |
| 2 | GDO0 | Output | Information output pin |
| 3 | CSN | Input | Chip selection pin,for starting a SPI communication |
| 4 | SCK | Input | SPI clock pin |
| 5 | MOSI | Input | SPI data input pin |
| 6 | MISO/GDO1 | Output | SPI data output pin |
| 7 | GDO2 | Output | Information output pin |
| 8 | GND | - | Ground, connecting to power ground reference |
| 9 | ANT | - | Antenna |
| 10 | GND | - | Ground, connecting to power ground reference |
