Ebyte Cost Effective CC1101 Wireless Module Long Range Wireless Rf Transceiver Module
[IC]：CC1101
[Frequency]：900~925.5MHz
[Power]：10dBm
[Distance]：1.2km
[Interface]：SPI
[Weight]：0.5±0.1g
[Introduction]：E07-915MS10,based on CC1101 of TI,is a SMD transceiver module operating at 915MHz with small size and 10mW transmitting power.It supports low power consumption development and has stable batch production,which make the module suitable for various applications.

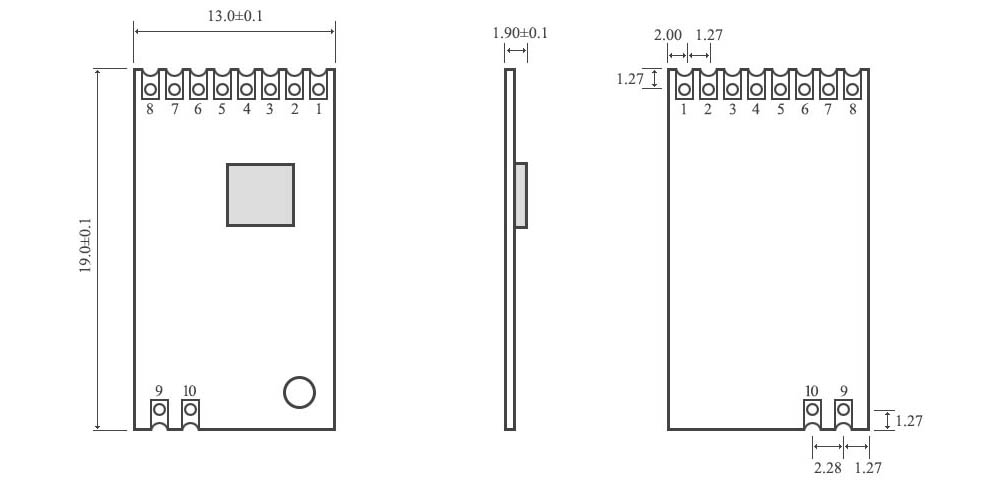

| Pin No | Pin item | Pin direction | Pin application |
|---|---|---|---|
| 1 | VCC | - | Power supply 1.8V ~ 3.6VDC |
| 2 | GDO0 | Output | Output pin |
| 3 | CSN | Input | SPI chip select |
| 4 | SCK | Input | SPI clock |
| 5 | MOSI | Input | SPI chip select |
| 6 | MISO/GDO1 | Output | SPI master input slave output |
| 7 | GDO2 | Output | Output pin |
| 8 | GND | - | Ground |
| 9 | ANT | - | Antenna |
| 10 | GND | - | Ground |
