[IC]:SI4438
[Frequency]:425~525MHz
[Power]:20dBm
[Distance]:1.8km
[Interface]:SPI
[Weight]:0.9±0.1g
[Introduction]:E10-433MS is based on original imported RF SI4438 form Silicon Labs in USA. Module features stable performance, long transmitting distance and strong penetration and diffraction ability.

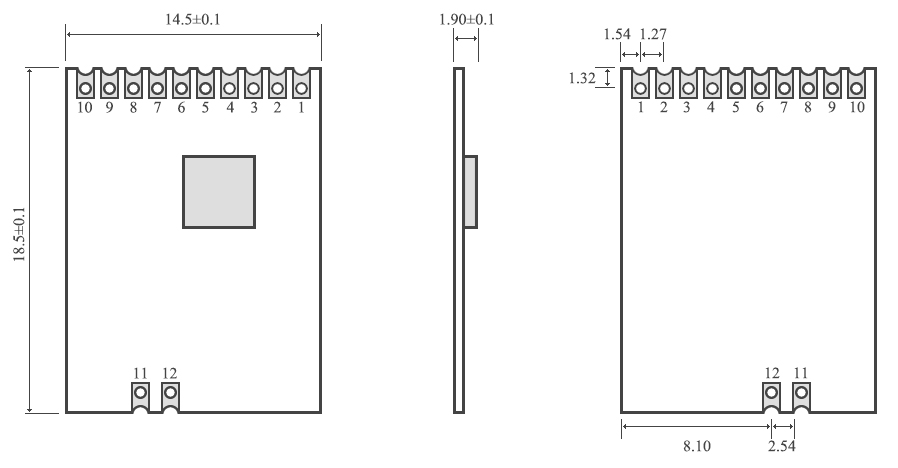

Pin No | Pin item | Pin direction | Pin application |
---|---|---|---|
1 | GND | - | Ground |
2 | VCC | - | Power supply 1.8V~3.6VDC |
3 | GPIO0 | Output | GPIO of SI4463 |
4 | GPIO1 | Output | GPIO of SI4463 |
5 | IRQ | Output | Interrupt request |
6 | SCK | Input | SPI master input slave output |
7 | MISO | Output | SPI master output slave input |
8 | MOSI | Input | SPI master input slave output |
9 | nSEL | Input | SPI chip select |
10 | SDN | - | The module working enable control the pin, it's low level when working (See SI4463 manual for |
more details) | |||
11 | ANT | - | Antenna |
12 | GND | - | Ground |
