[IC]:SI4463
[Frequency]:425~525MHz
[Power]:0dBm
[Distance]:6.0km
[Interface]:SPI
[Weight]:4.9±0.1g
[Introduction]:E10-433MS1W is based on original imported RF SI4463 form Silicon Labs in USA. Module features stable performance, long transmitting distance and strong penetration and diffraction ability. It adopts 26M crystal oscillator.

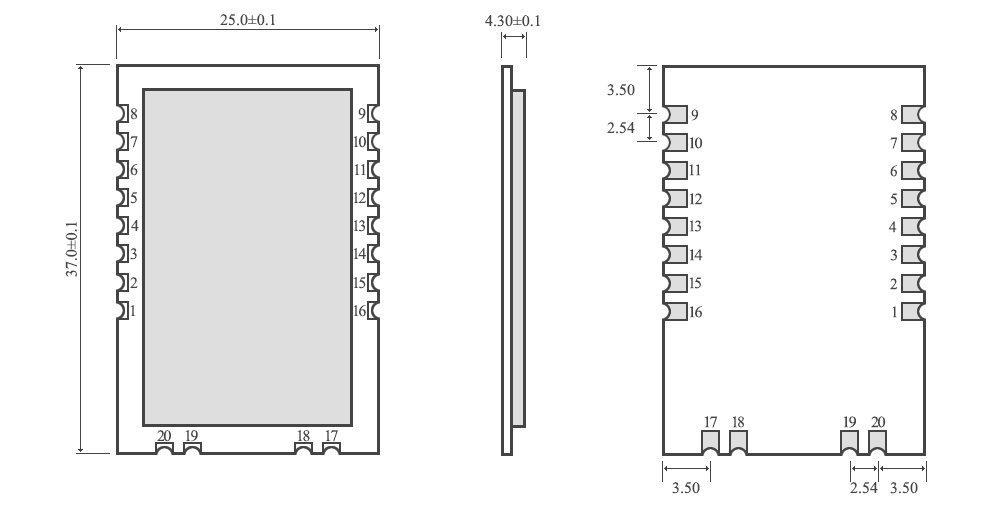

Pin No | Pin item | Pin direction | Pin application | |
---|---|---|---|---|
1 | GND | Input | Ground | |
2 | SDN | Input | The module working enable control the pin, it's low level when working (See SI4463 manual for | |
more details) | ||||
3 | GPIO3 | Output | GPIO of SI4463 | |
4 | GPIO2 | Output | GPIO of SI4463 | |
5 | nSEL | Input | SPI chip select | |
6 | MOSI | Input | SPI master input slave output | |
7 | MISO | Output | SPI master output slave input | |
8 | ENT | Input | Clock enable(high-level effective) | |
9 | SCK | Output | SPI master input slave output | |
10 | IRQ | Output | Interrupt request | |
11 | GPIO1 | Output | Output pin | |
12 | GPIO0 | Output | Output pin | |
13 | VCC | Input | Power supply 3.3V~5.5V DC (Recommend 4.75~5.25V) | |
14 | GND | Input | Ground | |
15 | ENP | Input | PA power enable (High-level effective) | |
16 | GND | Input | Ground | |
17 | GND | Input | Ground | |
18 | GND | Input | Ground | |
19 | GND | Output | Ground | |
20 | ANT | Output | Antenna |
