[Interface signal]：Ethernet

[Transmission method]：Ethernet

[Working voltage]：8 ~ 28V DC

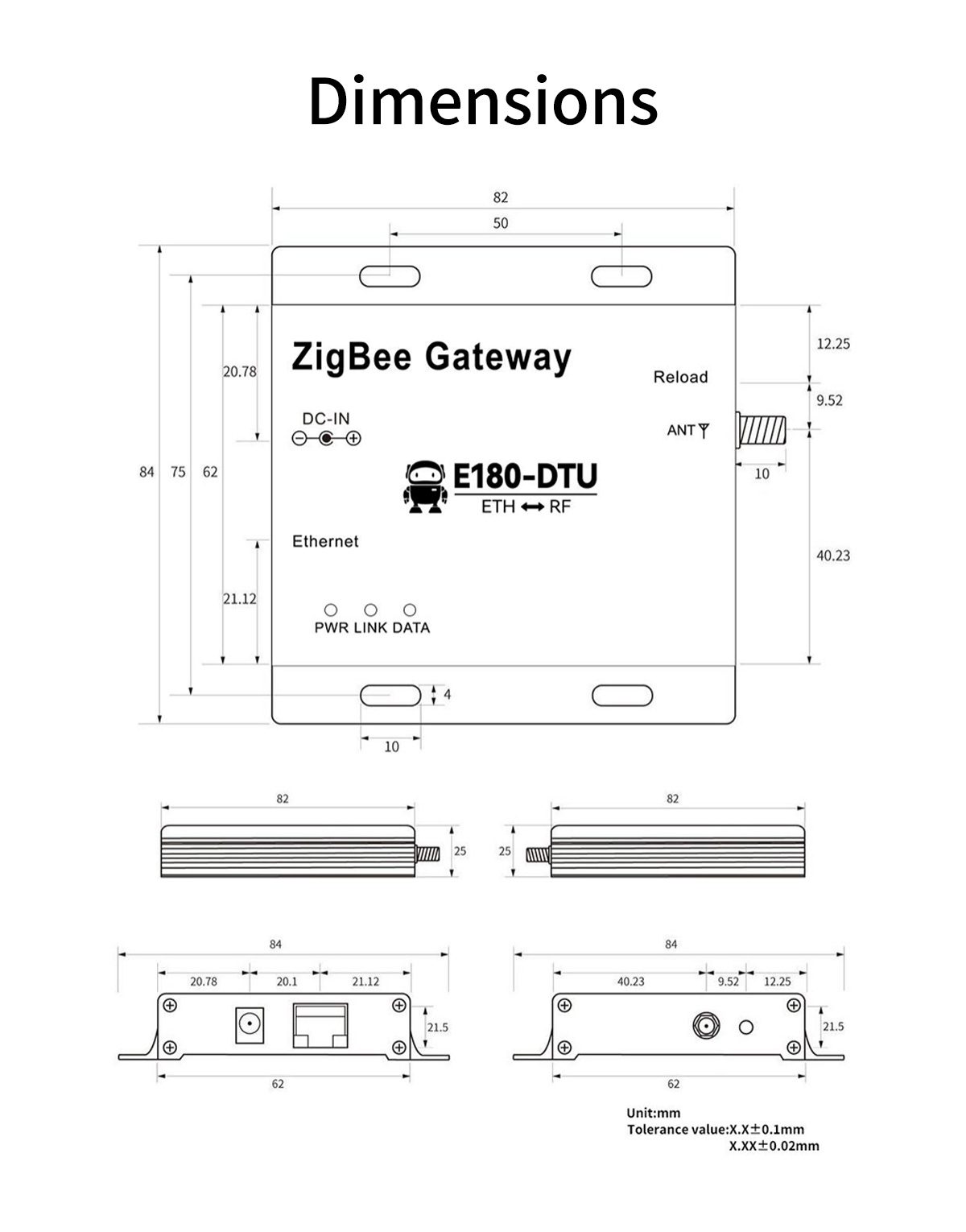

[Product size]：84*82*25mm

[product weight:]：117g ± 2g

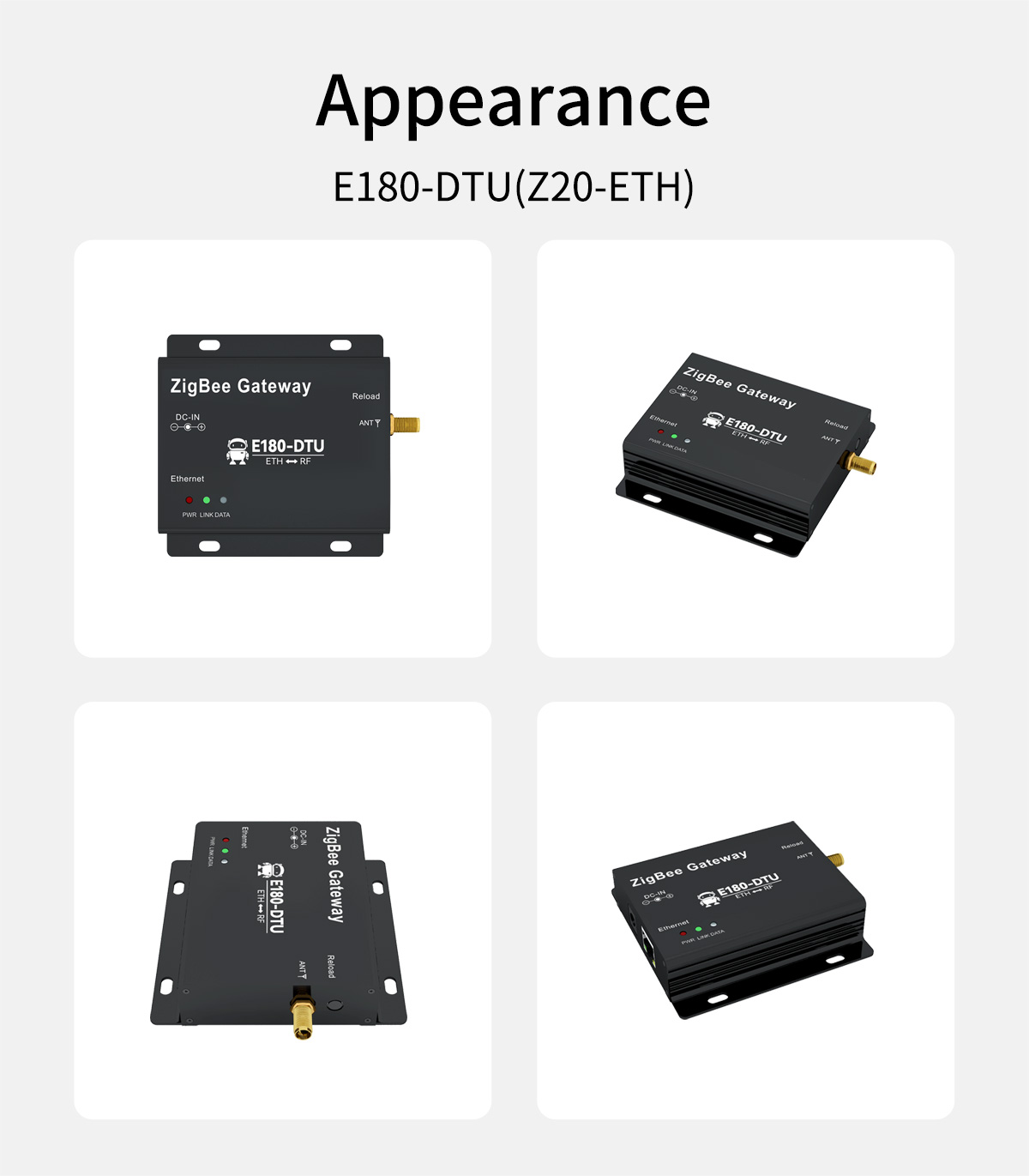

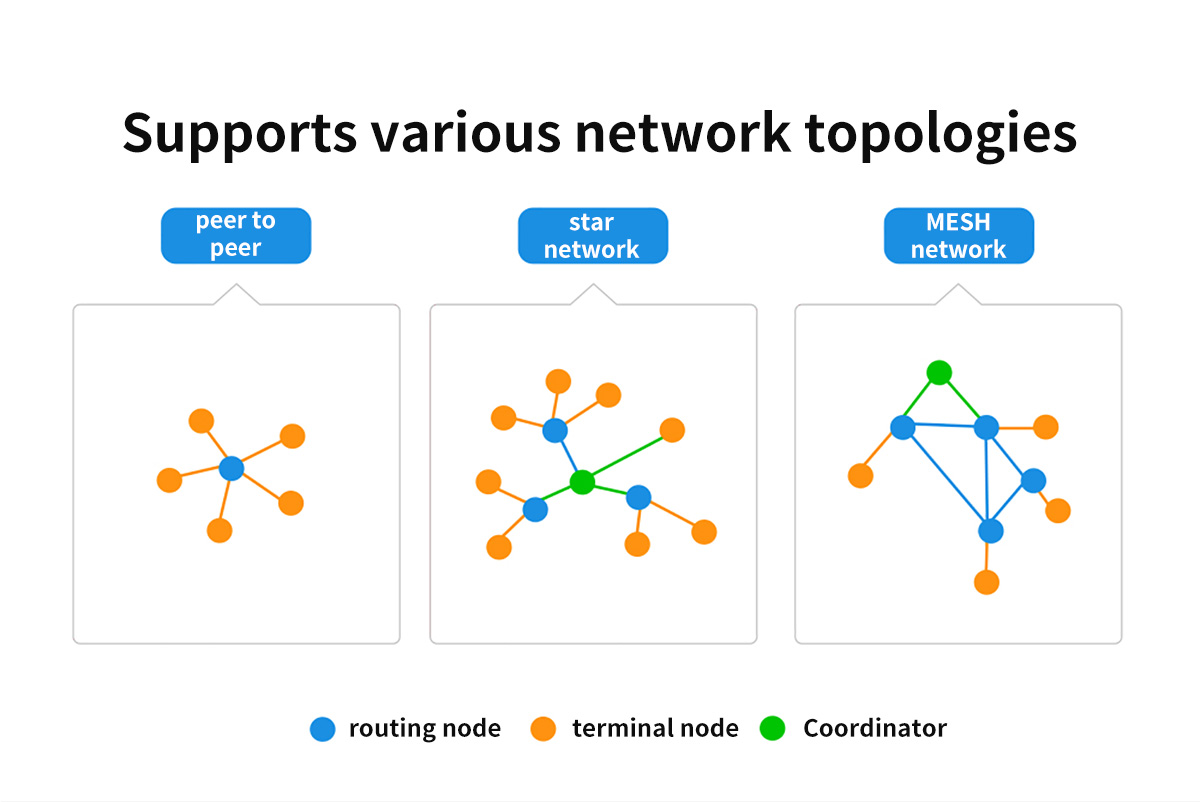

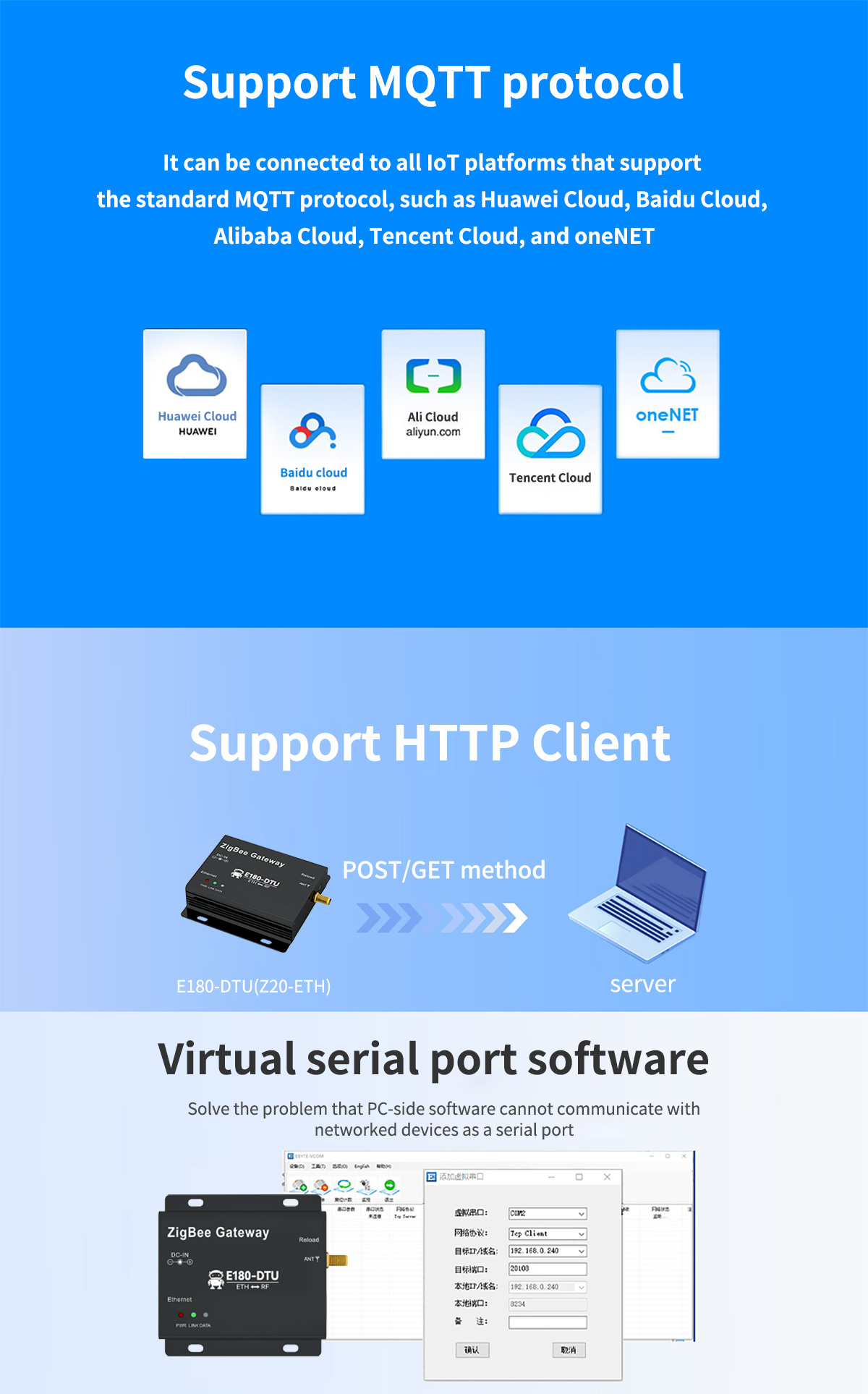

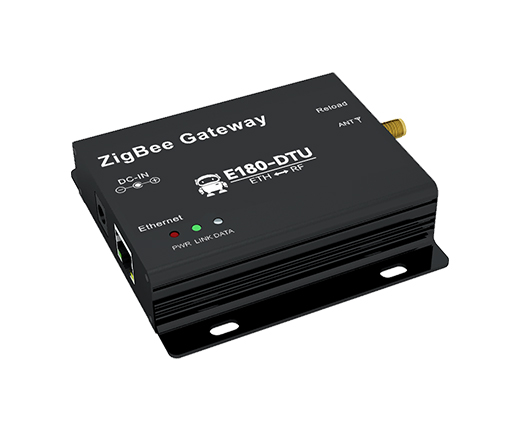

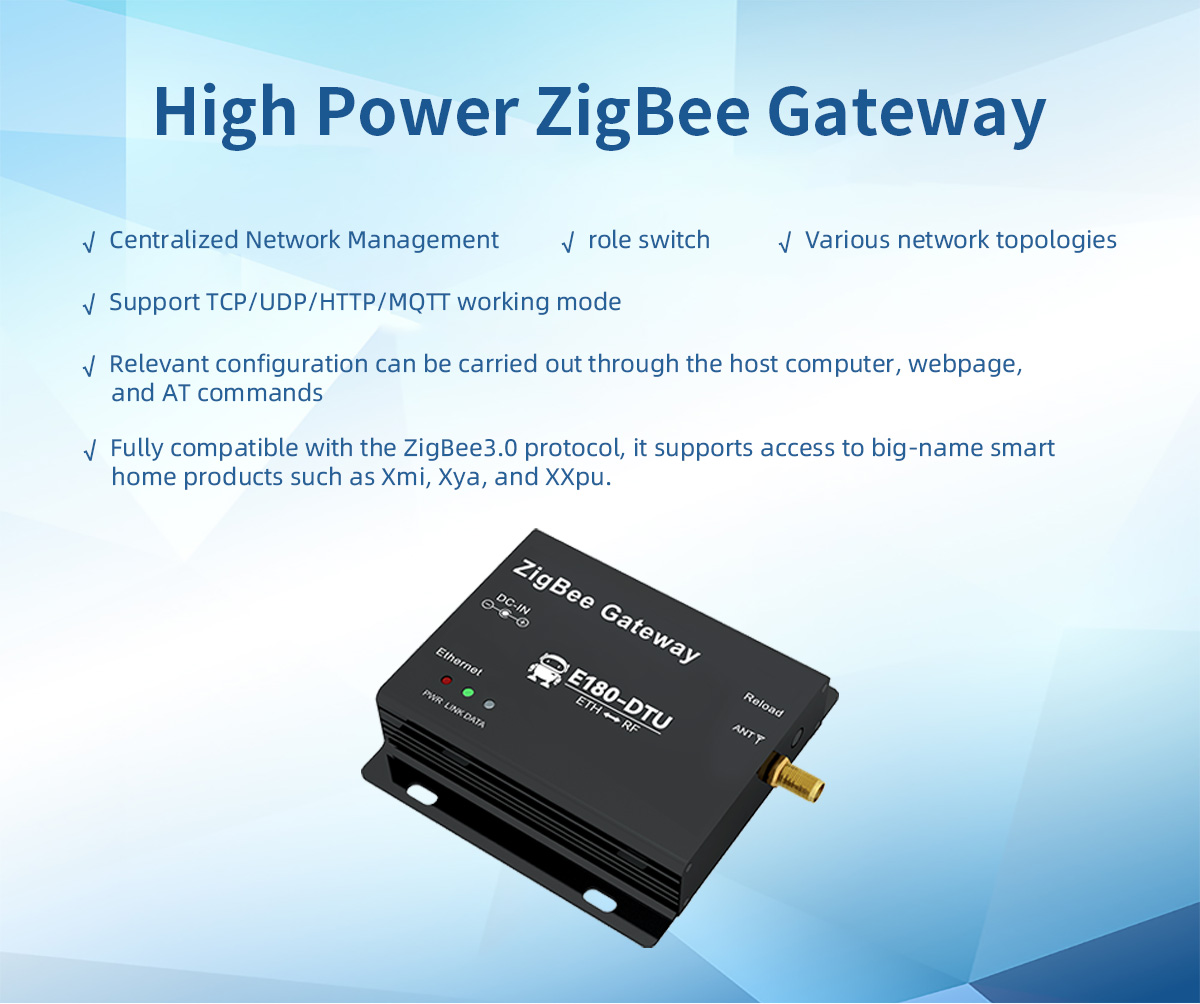

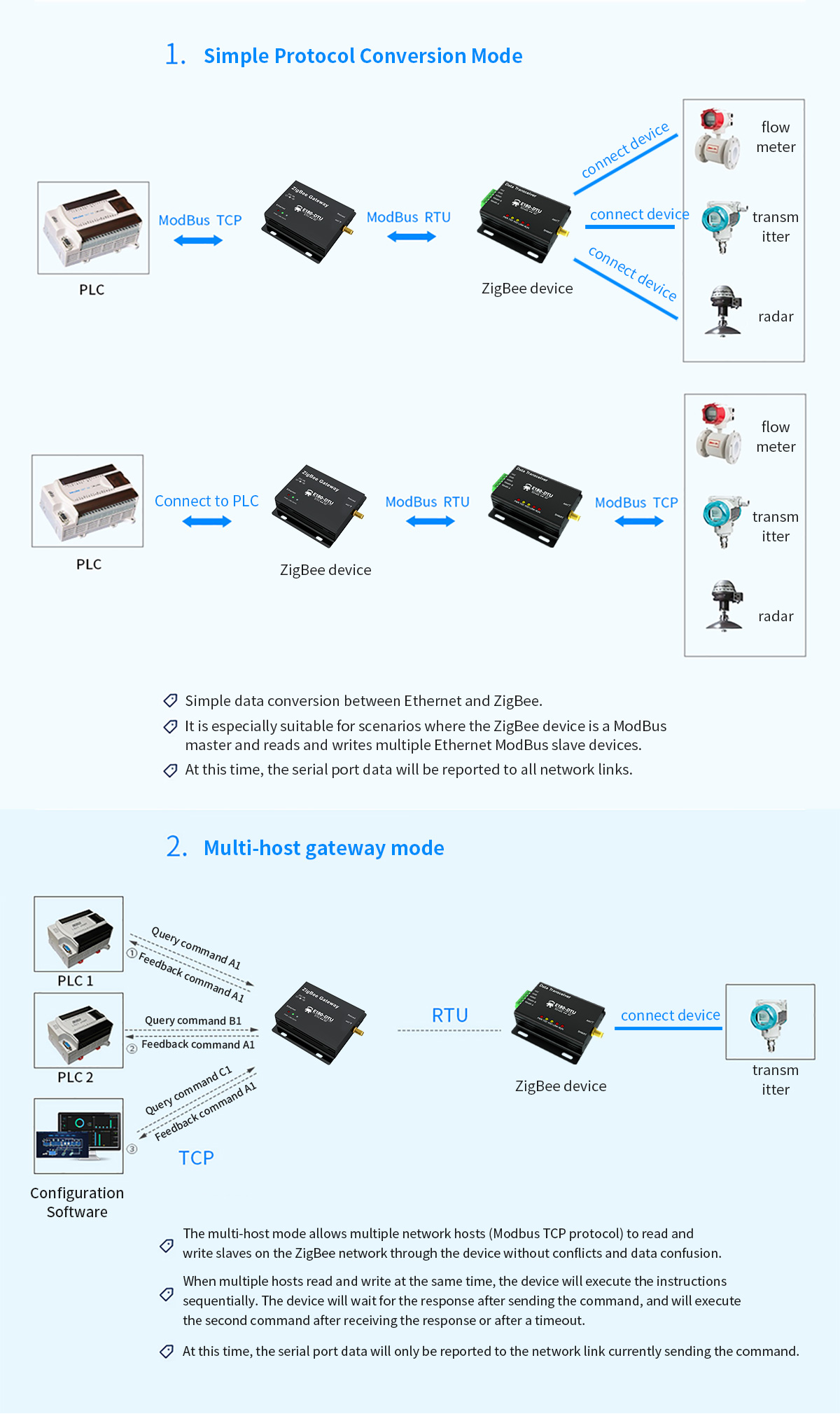

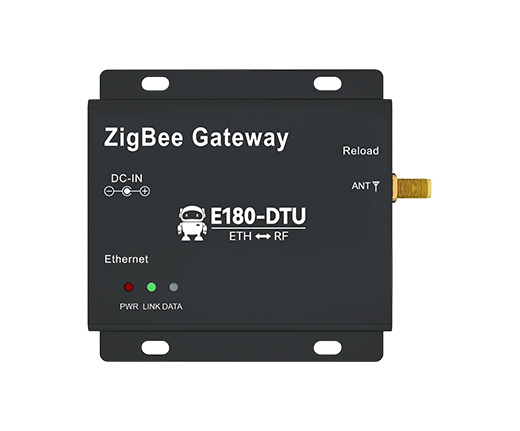

[Introduction]：E180-DTU (Z20-ETH) is a high-power ZigBee gateway with complete supporting ZigBee node equipment, supports adaptive network speed (up to 10M full duplex), and provides TCP Server, TCP Client, UDP Server, UDP Client , HTTP Client, MQTT Client six working modes, users can configure related configurations through WEB pages. There are 3 logical device types in a ZigBee network: coordinator, router, and terminal device. ZigBee network consists of a coordinator and multiple routers or multiple terminals.
