10km Long Range Wireless Rf Transmitter Receiver Module 433mhz Sx1278 Lora Iot Module
[IC]：SX1278
[Frequency]：410~510MHz
[Power]：30dBm
[Distance]：10.0km
[Interface]：SPI
[Weight]：4.8±0.1g
[Introduction]：E19-433M30S is based on original imported RFIC SX1278 from SEMTECH, adopts LoRa spread spectrum technology.Which means the transmitting distance is much longer than before, besides the power density is more concentrated and anti-interference performance is better.

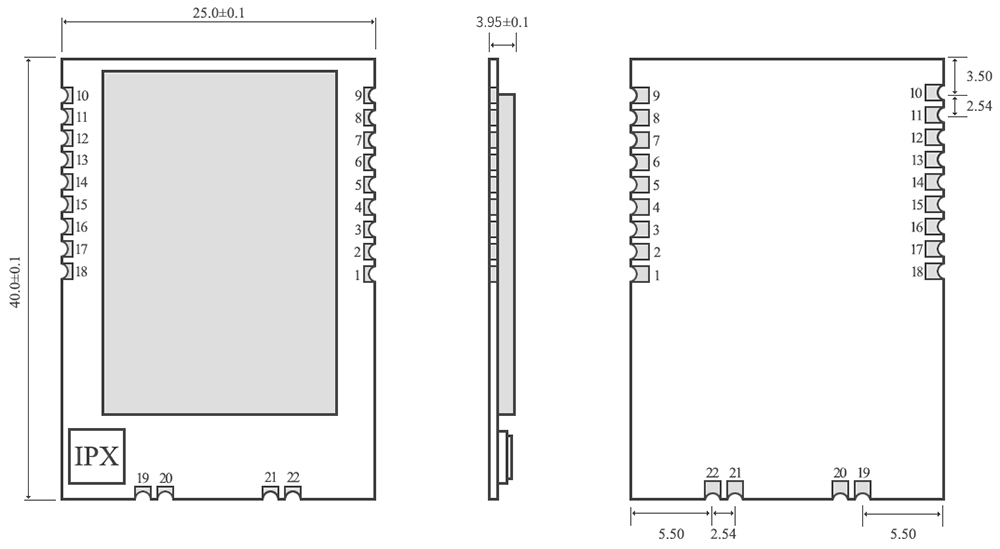

| Pin No | Pin item | Pin direction | Pin application |
|---|---|---|---|
| 1 | GND | - | Ground electrode, connected to the power reference ground |
| 2 | DIO5 | Input/Output | Configurable IO port（Please find more on SX1276 datasheet） |
| 3 | DIO4 | Input/Output | Configurable IO port（Please find more on SX1276 datasheet） |
| 4 | DIO3 | Input/Output | Configurable IO port（Please find more on SX1276 datasheet） |
| 5 | DIO2 | Input/Output | Configurable IO port（Please find more on SX1276 datasheet） |
| 6 | DIO1 | Input/Output | Configurable IO port（Please find more on SX1276 datasheet） |
| 7 | DIO0 | Input/Output | Configurable IO port（Please find more on SX1276 datasheet） |
| 8 | RST | Input | Reset |
| 9 | GND | - | Ground electrode, connected to the power reference ground. |
| 10 | GND | - | Ground electrode, connected to the power reference ground. |
| 11 | VCC | - | Power supply: 4.75~5.5V (Ceramic filter capacitoris advised to add) |
| 12 | SCK | Input | SPI clock |
| 13 | MISO | Output | SPI clock |
| 14 | MOSI | Input | SPI clock |
| 15 | NSS | Input | Chip select |
| 16 | TXEN | Input | Radio frequency switch control, make sure the TXEN pinis in high level, RXEN pin is in low level when transmitting. |
| 17 | RXEN | Input | Radio frequency switch control, make sure the TXEN pinis in high level, RXEN pin is in low level when transmitting. |
| 18 | GND | - | Ground electrode, connected to the power reference ground |
| 19 | ANT | - | Antenna |
| 20 | GND | - | Ground electrode, connected to the power reference ground |
| 21 | GND | - | Ground electrode, connected to the power reference ground |
| 22 | GND | - | Ground electrode, connected to the power reference ground |
