E30-490T20D wireless transceiver module RFIC SI4463 low-power
[IC]：SI4438
[Frequency]：475~500.5MHz
[Power]：10~20dBm
[Distance]：2.5km
[Interface]：UART
[Weight]：6.7±0.1g
[Introduction]：E30-490T20D is a 20dBm wireless transceiver module. It operates at 475-500.5MHz, based on RFIC SI4463 from Silicon Labs, provides an easy way to use & low-power solution for wireless data transmission.

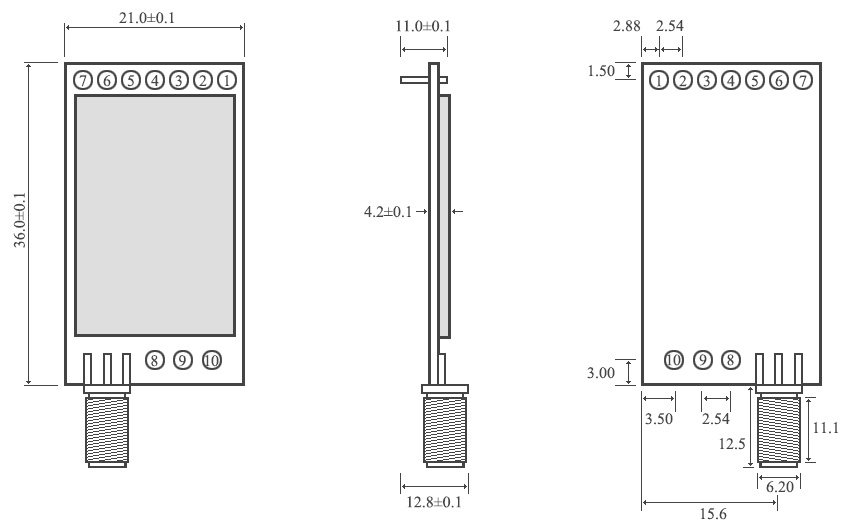

| Pin No. | Pin Item | Pin Direction | Pin Application |
|---|---|---|---|
| 1 | M0 | Input（weak pull-up） | Work with M1 & decide the four operating modes. Floating is not allowed, can be ground. |
| 2 | M1 | Input（weak pull-up） | Work with M0 & decide the four operating modes. Floating is not allowed, can be ground. |
| 3 | RXD | Input | TTL UART inputs, connects to external TXD (MCU, PC) output pin.Can be configured as open-drain or pull-up input |
| 4 | TXD | Output | TTL UART outputs, connects to external RXD (MCU, PC) input pin.Can be configured as open-drain or push-pull output |
| 5 | AUX | Output | To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output (floating is allowed). |
| 6 | VCC | Input | Power supply 2.3V-5.5V DC |
| 7 | GND | Input | Ground |
| 8 | Fixing hole | Fixing hole | |
| 9 | Fixing hole | Fixing hole | |
| 10 | Fixing hole | Fixing hole | |
