SMD UART rf module with transparent transmission TTL level WOR
[IC]：SI4438
[Frequency]：475~500.5MHz
[Power]：10~20dBm
[Distance]：2.5km
[Interface]：UART
[Weight]：2.3±0.1g
[Introduction]：E30-490T20S is a SMD UART rf module with transparent transmission,operates at 475-500.5MHz,TTL level,WOR(Ultra-low power consumption).The module features FEC(Forward Error Correction)algorithm,which ensure its high coding efficiency & good correction performance.

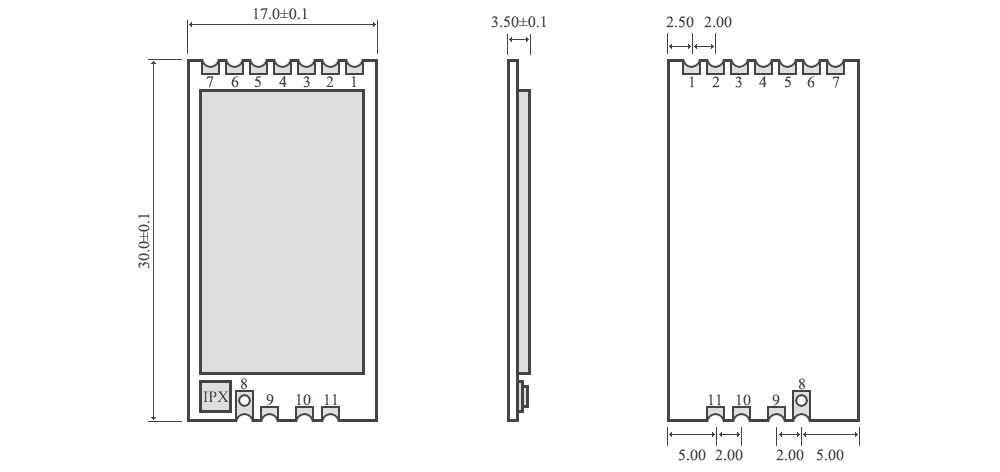

| Pin No. | Pin Item | Pin Direction | Pin Application |
|---|---|---|---|
| 1 | M0 | Input（weak pull-up） | Work with M1 & decide the four operating modes. (Floating is not allowed, can be ground) |
| 2 | M1 | Input（weak pull-up） | Work with M0 & decide the four operating modes. (Floating is not allowed, can be ground) |
| 3 | RXD | Input | TTL UART inputs, connects to external (MCU, PC) TXD output pin.Can be configured as open-drain or pull-up input. |
| 4 | TXD | Output | TTL UART outputs, connects to external RXD (MCU,PC) input pin.Can be configured as open-drain or push-pull output |
| 5 | AUX | Output | To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output. (Floating is allowed) |
| 6 | VCC | Input | Power supply 2.3V~5.5V DC |
| 7 | GND | Input | Ground electrode |
| 8 | ANT | Output | Antenna interface（ high frequency signal output） |
| 9 | GND | Output | Reference places of high frequency signal output |
| 10 | GND | Input | Ground electrode |
| 11 | GND | Input | Ground electrode |
