Ebyte OEM ODM E30T-433T20S FEC 433mhz module 150 degrees High temperature wireless serial port transparent transmission module
[Interface]：UART
[Frequency]：433MHz
[Power]：20dbm
[Distance]：2.5KM
[Size]：17*30mm
[Introduction]：E30T-433T20S is a high temperature wireless serial port module (UART) ,half duplex, integrated transceiver, transparent transmission, SMD type, TTL level output, working frequency band 4 25 ~ 4 50.5MHz , transmit power 100mW , can work in -40 ~ +125 °C environment, suitable for high temperatureoperation scenarios .

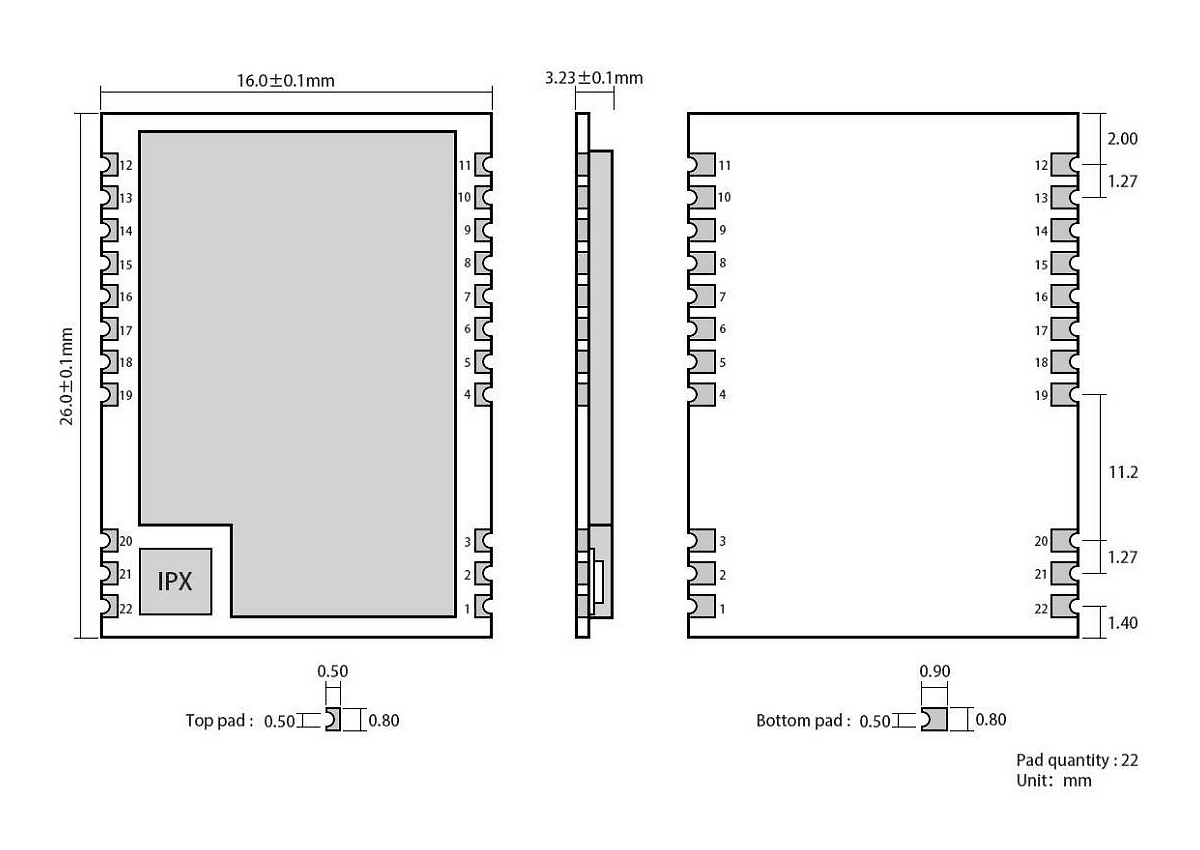

| Pin No. | Pin name | Pin orientation | Pin usage |
|---|---|---|---|
| 1 | GND | - | Module ground wire |
| 2 | GND | - | Module ground wire |
| 3 | GND | - | Module ground wire |
| 4 | GND | - | Module ground wire |
| 5 | M0 | Input (very weak pull-up) | Cooperate with M1 to determine the 4 working modes of the module (can not be suspended, if not used, it can be grounded) |
| 6 | M1 | Input (very weak pull-up) | Cooperate with M0 to determine the 4 working modes of the module (can not be suspended, if not used, it can be grounded) |
| 7 | RXD | enter | TTL serial port input, connected to the external TXD output pin;Can be configured as open-drain or pull-up input, see parameter settings for details. |
| 8 | TXD | output | TTL serial output, connected to external RXD input pin;Can be configured as open-drain or push-pull output, see parameter settings for details. |
| 9 | AUX | output | It is used to indicate the working status of the module; the user wakes up the external MCU, and outputs a low level during the power-on self-test initialization; it can be configured as open-drain output or push-pull output, see parameter settings for details. (can be left floating) |
| 10 | VCC | - | Positive reference for module power supply, voltage range: 2.7~ 5.5 V DC |
| 11 | GND | - | Module ground wire |
| 12 | VDD | - | Chip power positive reference, voltage range: 3.3 V DC |
| 13 | GND | - | Module ground wire |
| 14 to 1 8 | NC | - | reserved |
| 19 | GND | - | Module ground wire |
| 20 | GND | - | Module ground wire |
| 21 | ANT | - | antenna |
| 22 | GND | - | Module ground wire |
