EBYTE hot selling 17dBm AX5043 long distance 2100M 433mhz rf tx/rx module uart transmitter
[IC]：AX5243
[Frequency]：425~450.5MHz
[Power]：7~17dBm
[Distance]：2.0km
[Interface]：UART
[Weight]：2.5±0.1g
[Introduction]：E31-433T17S is a wireless transceiver module based on AX5243 from AXSEM(can be transmitter and receiver).The module uses FEC (forward error correction) algorithm,which greatly improve the anti-interference ability.

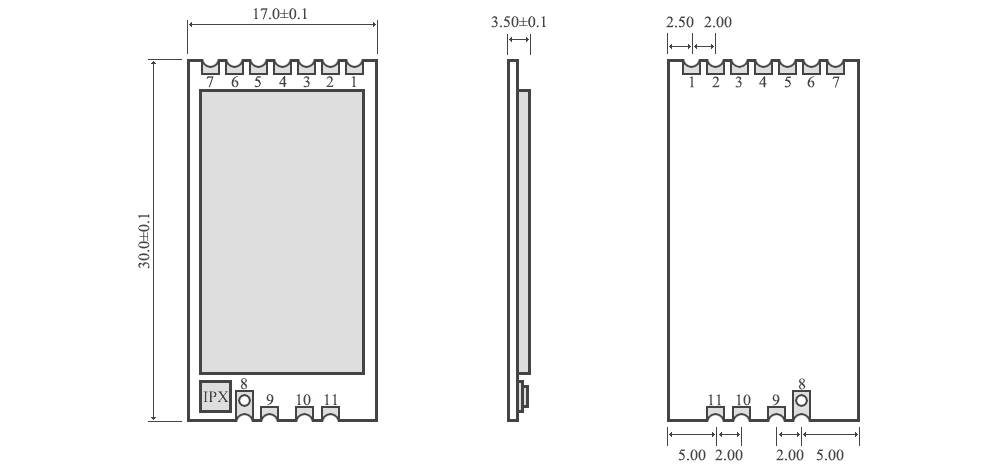

| Pin No. | Pin Item | Pin Direction | Pin Application |
|---|---|---|---|
| 1 | M0 | Input（weak pull-up） | Work with M1 & decide the four operating modes. (Floating is not allowed, can be ground) |
| 2 | M1 | Input（weak pull-up） | Work with M0 & decide the four operating modes. (Floating is not allowed, can be ground) |
| 3 | RXD | Input | TTL UART inputs, connects to external (MCU, PC) TXD output pin.Can be configured as open-drain or pull-up input. |
| 4 | TXD | Output | TTL UART outputs, connects to external RXD (MCU,PC) input pin.Can be configured as open-drain or push-pull output |
| 5 | AUX | Output | To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output. (Floating is allowed) |
| 6 | VCC | Input | Power supply 2.1V~5.5V DC |
| 7 | GND | Input | Ground electrode |
| 8 | ANT | Output | Reference places of high frequency signal output |
| 9 | GND | Input/Output | Antenna interface（ high frequencysignal output） |
| 10 | GND | Input | Ground electrode |
| 11 | GND | Input | Ground electrode |
