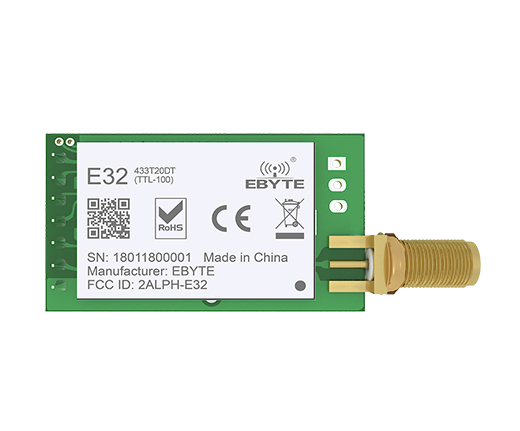

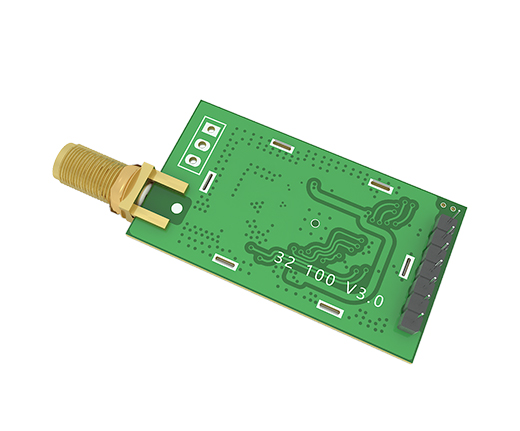

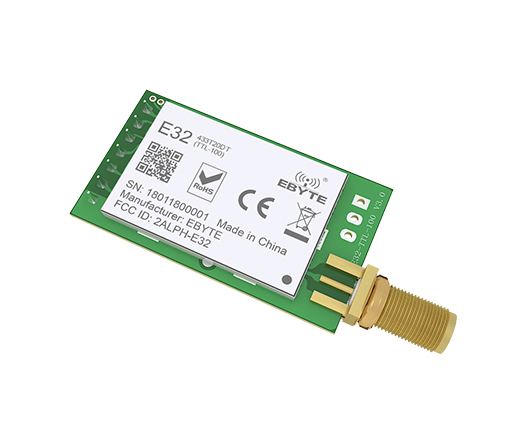

Ebyte free sample CE FCC tcxo high power rf long range 433mhz wireless transmitter rf module
[IC]：SX1278
[Frequency]：410~441MHz
[Power]：10~20dBm
[Distance]：3.0km
[Interface]：UART
[Introduction]：E32-433T20DT is a wireless transceiver module based on SX1278 from SEMTECH(can be transmitter and receiver both). It adopts LoRa spread spectrum technology, with this technology the transmitting distance and penetration ability of the module improved more than 1 times compared with traditional FSK.
| Module | Interface | IC | Frequency（hz） | Power（dbm） | Distance（km） | Air speed（bps） | Package | Size（mm） | Feature | Manual | Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E32-433T37S | UART | SX1278 | 410M-441M | 37 | 25 | 0.3k~19.2k | SMD | 50*30.9 | LoRa spread spectrum, long-distance anti-jamming | ||
| E32-433T20S | UART | SX1278 | 433M | 20 | 5 | 2.4k~19.2k | SMD | 16*26 | LoRa spread spectrum | ||
| E32-400M20S | - | SX1278 | 410～493MHz | 20dBm | 5km | - | - | 14 * 20 mm | - | ||
| E19-433M20S2 | SPI | SX1278 | 433M | 20 | 5 | 0.018~37.5k | SMD | 15 * 15 | LoRa spread spectrum | ||
| E19-433M30S | SPI | SX1278 | 433M/470M | 30 | 10.0 | 0.018~37.5k | SMD | 25*37 | Lora spread-spectrum | ||
| E32-170T30D | UART | SX1278 | 160~173MHz | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa Spread Spectrum | ||
| E32-433T30S | UART | SX1278 | 433M | 30 | 8.0 | 0.3k~19.2k | SMD | 25*40.5 | LoRa spread spectrum | ||
| E32-400T20S3 | UART | SX1278 | 433M 470M | 20 | 3 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ||
| E32-433T20DT | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ||
| E19-433M20SC | SPI | SX1278 | 433M | 20 | 5.0 | 0.018~37.5k | SMD | 17.6*25.2 | Lora spread-spectrum |
