E34-DTU(2G4D20) RS232/RS485 interface full-duplex long transmitting distance & high data rate, transmitting and receiving at the same time.
[Frequency]：2.4~2.505GHz
[Power]：20dBm
[Distance]：2.0km
[Interface]：RS232/RS485
[Weight]：127±5g
[Introduction]：High-speed DTU E34-DTU-2G4D20 with RS232/RS485 interface,8V~28V, operating at 2.4~2.518GHz features full-duplex, unlimited package length, concentrated power density, long transmitting distance & high data rate, transmitting and receiving at the same time. It supports data encryption & compression. File transfer is available.

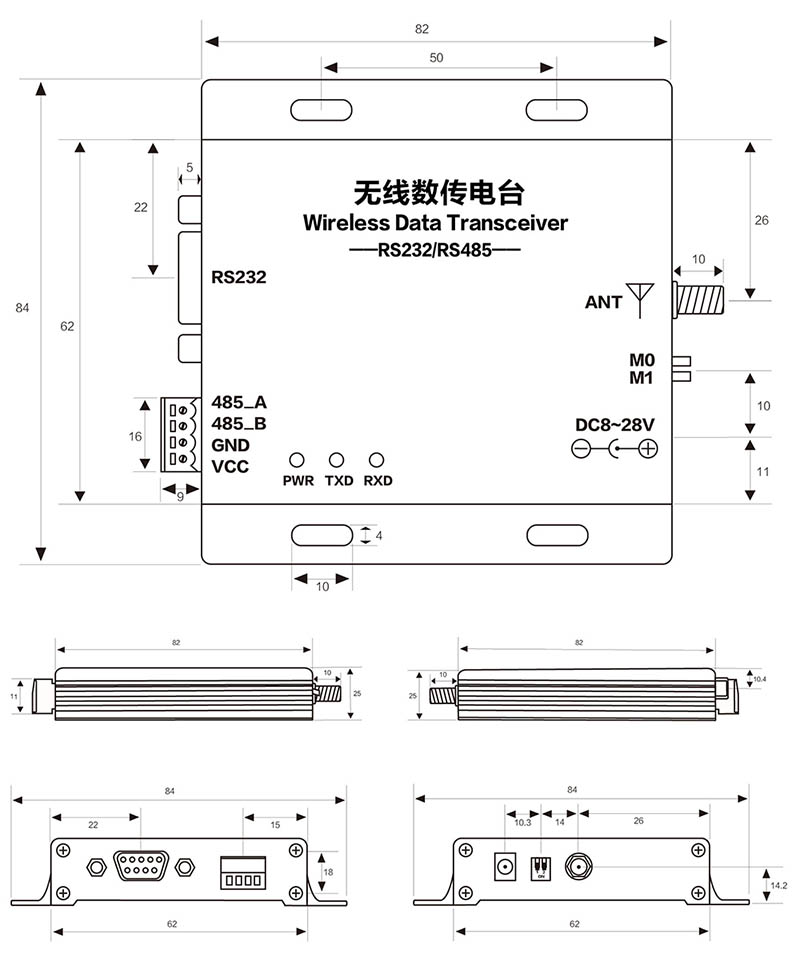

| Pin No. | Name | Function | Description |
|---|---|---|---|
| 1 | DB-9 female connector | RS-232 connector | Standard RS-232 connector |
| 2 | 3.81 wiring connector | RS-485, power connector | Standard RS-485 connector and line-pressing power source connector |
| 3 | PWR-LED | Power source indicator | Red, light on when power on |
| 4 | TXD-LED | TX indicator | Yellow, flicker when transmitting data |
| 5 | RXD-LED | RX indicator | Yellow, flicker when receiving data |
| 6 | DC power connector | Power source connector | Drop-in round hole, 5.5mm external diameter, 2.5mm internal diameter |
| 7 | Toggle switch | Toggle switch | Operation mode control |
| 8 | Antenna interface | SMA-K connector | External screw and inner hole, 10mm long, 50Ω characteristic impedance |
