E90-DTU(230SL22) 220~236MHz 22dBm LoRa long range RS232/RS485 TCXO auto repeater RSSI SX1262 Transceiver Modem
[Frequency]：220.125~236.125MHz
[Power]：22dBm
[Distance]：5km
[Interface]：RS232/RS485
[Weight]：128±5g
[Weight]：128±5g
[Introduction]：E90-DTU (230SL22) is a data transceiver with military-grade LoRa modulation technology. With multiple transmission modes, it works in the (220.125~236.125MHz) frequency band (Default 230.125MHz). The transceiver provides transparent RS232/RS485 interface and supports 8~. 28V voltage input.

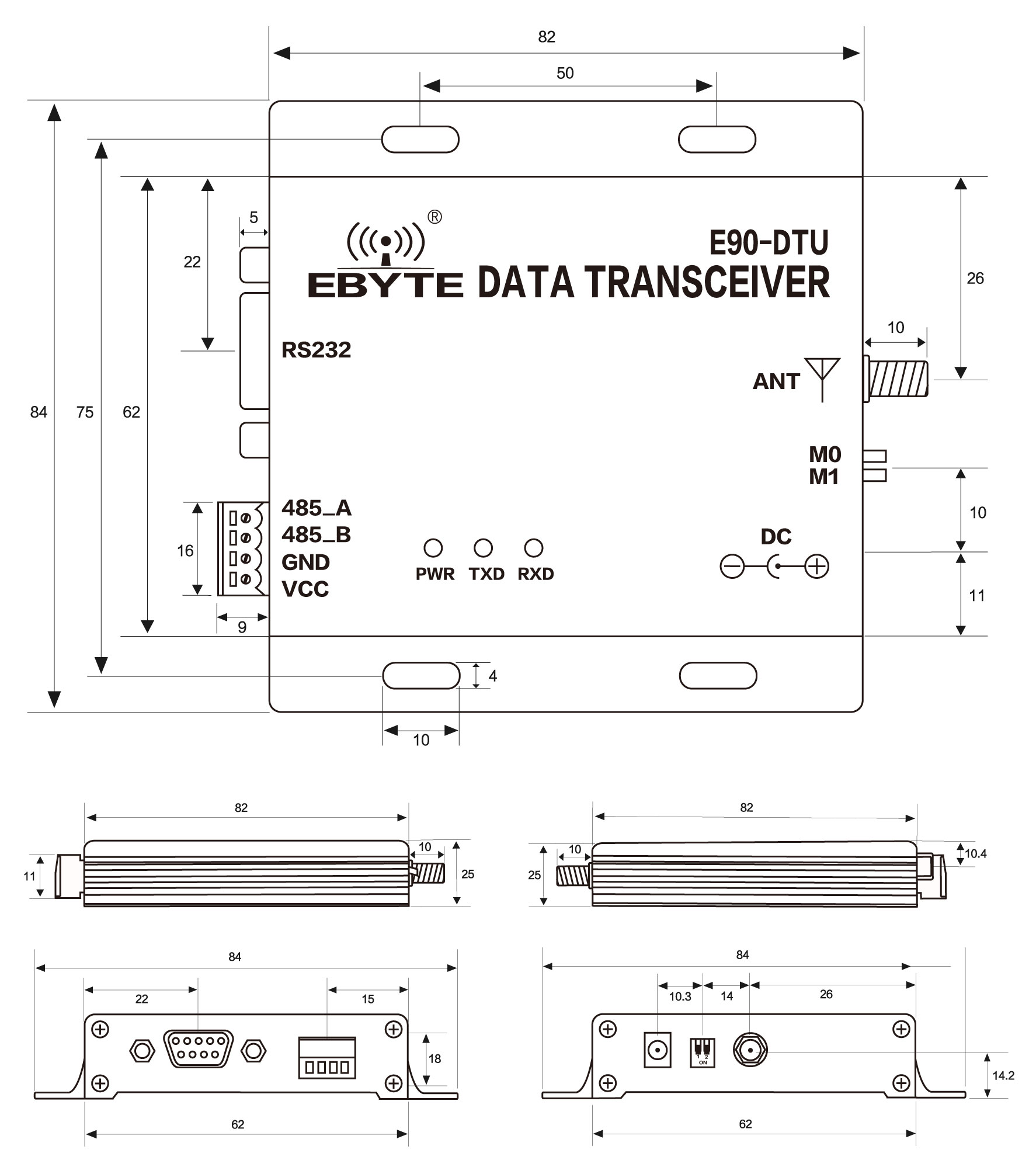

| Pin No. | Name | Function | Description |
|---|---|---|---|
| 1 | DB-9 femal socket | RS-232 interface | Standard RS-232 interface |
| 2 | 3.81 connecting terminal | RS-485, power interface | Standard RS-485 and screwing interface |
| 3 | PWR-LED | Power indicator | Red when powered-on |
| 4 | TXD-LED | Transmitting indicator | Yellow, it flashes when transmitting data |
| 5 | RXD-LED | Receiving indicator | Yellow, it flashes when receiving data |
| 6 | DC power interface | Power interface | Straight hole, outer diameter: 5.5mm, inner diameter: 2.5mm |
| 7 | DIP switch | DIP switch | Working mode control |
| 8 | Antenna interface | SMA-K | External thread hole.L: 10mm. 50Ω resistance. |
