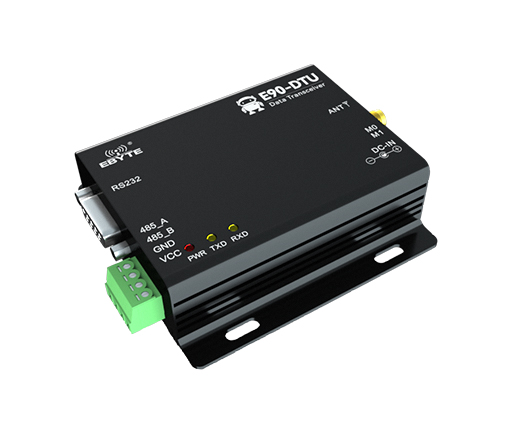

E90-DTU(433L37)-V8 433MHz sx1278 5W RS232 RS485 LoRa Wireless Modem iot solutions
[Frequency]：410~441MHz
[Power]：37dBm
[Distance]：20km
[Interface]：RS232/RS485
[Weight]：240±5g
[Introduction]：E90-DTU is a wireless data transceiver with the function of digital data processing,digital modulation and demodulation,FEC,balanced soft decision,etc.It provides transparent RS232/RS485 interface,different with the analog FM transceiver plus MODEM analog digital transceiver.

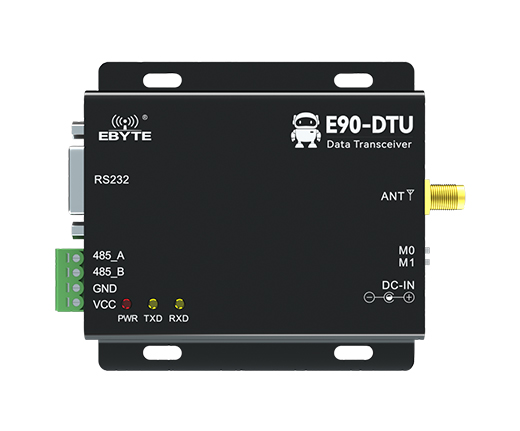

| Pin No. | Name | Function | Description |
|---|---|---|---|
| 1 | DB-9 femal socket | RS-232 interface | Standard RS-232 interface |
| 2 | 3.81 connecting terminal | RS-485, power interface | Standard RS-485 and screwing interface |
| 3 | PWR-LED | Power indicator | Red when powered-on |
| 4 | TXD-LED | Transmitting indicator | Yellow, it flashes when transmitting data |
| 5 | RXD-LED | Receiving indicator | Yellow, it flashes when receiving data |
| 6 | DC power interface | Power interface | Straight hole, outer diameter: 5.5mm, inner diameter: 2.5mm |
| 7 | DIP switch | DIP switch | Working mode control |
| 8 | Antenna interface | SMA-K | External thread hole.L: 10mm. 50Ω resistance. |
