[Carrier frequency]:850.125~930.125MHz
[Transmission power]:33dBm
[Communication distance]:16km
[Interface type]: RS232/RS485
[Product size]: 82*62*25mm
[Introduction]:E90-DTU (900SL33) is a wireless data transmission radio using military-grade LoRa modulation technology. It has multiple transmission methods. The default working frequency band is 868.125MHz, and it supports 8-28V voltage input. The module has a software FEC forward error correction algorithm that can actively correct interfered data packets, greatly improving reliability and transmission distance. The radio station has the function of data encryption. The data transmitted by the radio station in the air is random. Through the strict encryption and decryption algorithm, the data interception is meaningless; it supports the setting of sub-packet length, and supports different real-time and data packets.
PIN No | Definition | Function | Description |

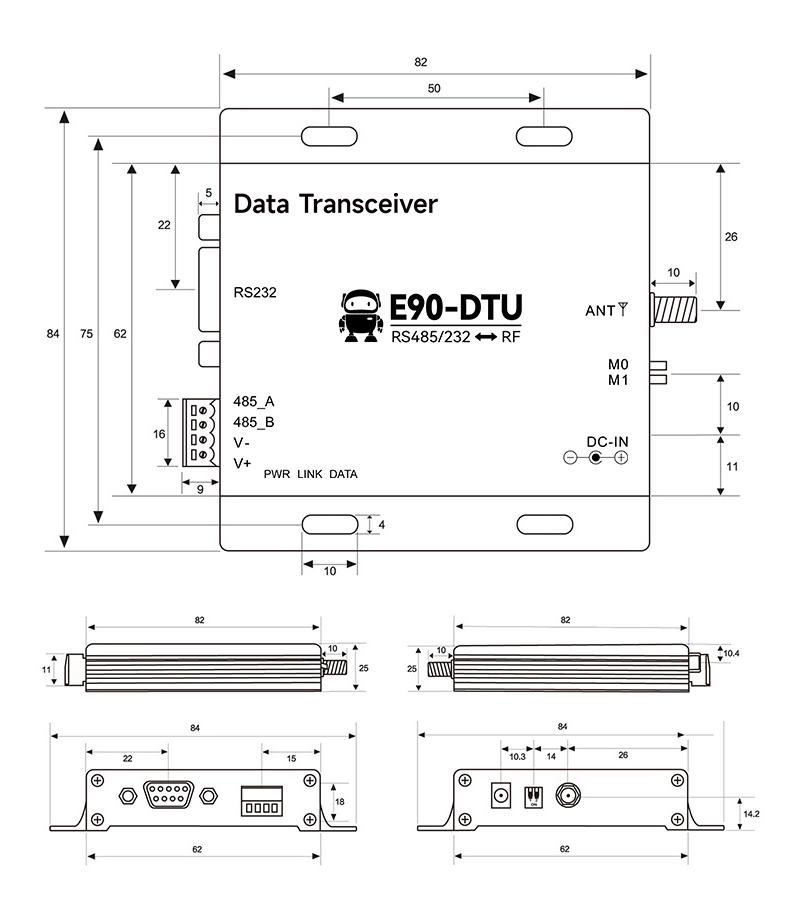

1 | product size | 82*62*25 mm | See installation size for details |
2 | Product weight | 150g | Weight tolerance of 4.5g |
3 | working temperature | -40℃〜+85℃ | Meet the needs of industrial-grade use |
4 | antenna impedance | 50c | Standard 50 Q characteristic impedance |
5 | voltage range | 8〜28V DC | Either 12V or 24V is recommended |
6 | communication interface | RS232.RS485 | Standard DB9 hole type /3.81 terminal |
7 | Baud rate | Factoty default: 9600 | The Baud rate range from 1200 to 115200 |
8 | address code | Factory default 0 J | A total of 65.536 address codes can be set |
