Lora wireless modem
RS485 Long Range Wireless Transmitter
Lora wireless modem
RS485 Long Range Wireless Transmitter
E95-DTU(400F30-485) Low Cost LoRa Module RS485 Long Range Wireless Transmitter And Receiver 30dBm LoRa Modem Support Modbus

[Frequency]：410～510MHz

[Power]：30dBm

[Distance]：1km

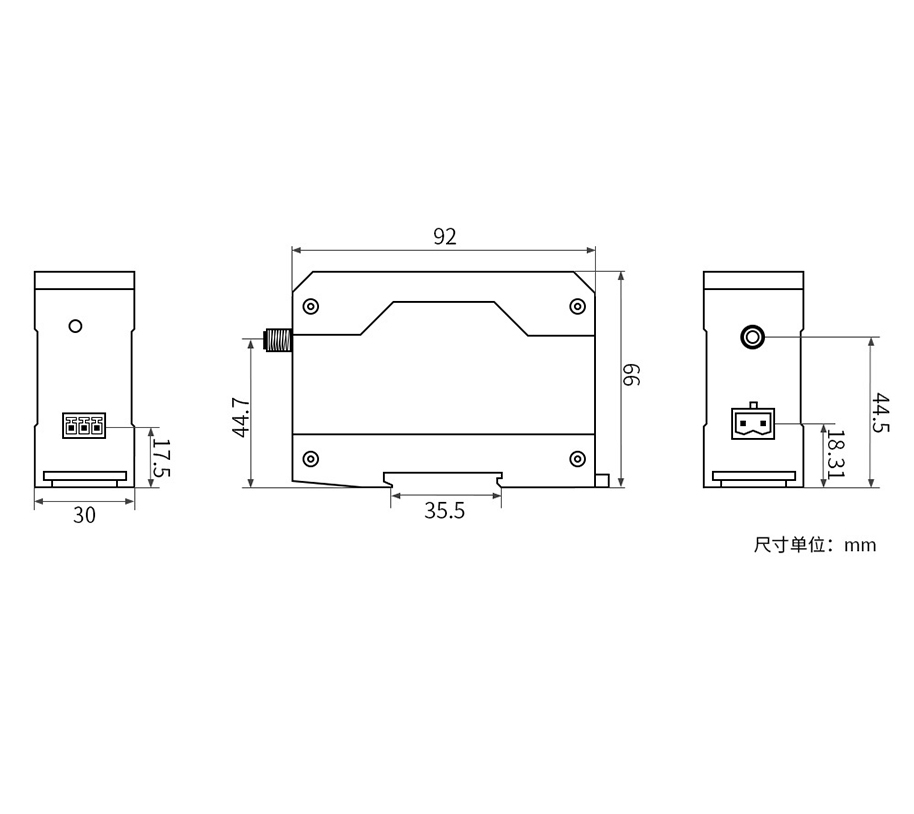

[Size]：92*67*30mm

[Interface]：RS485

[Weight]：95±5g

[Introduction]：E95-DTU(400F30-485) is a cost-effective wireless data transmission radio station with multiple transmission methods. It works in the (410～510MHz) frequency band (default 433MHz). The radio provides a transparent RS485 interface, adopts a plastic shell, and is mounted on a guide rail.As a communication medium, DTU, like optical fiber , microwave, and open wire, has a certain scope of application.
Related article :Application of industrial control of low-power wireless data transmission radio

Send Inquiry
Purchase
Manual Compare
1
No. Name Function Description
1 Mode Mode switch button Working mode switching control
2 ANT RF interface SMA-K，External thread inner hole
3 DC Power supply DC power input port, pressure line port
4 RS232 RS485 interface Standard RS-485 interface
5 PWR Power indicator Lights up when the power is on
6 TXD Sending indicator Flashes when sending data
7 RXD Receiving indicator Flashes when receiving data
8 MO Mode indicator Working mode indicator
9 M1 Mode indicator Working mode indicator
