[Frequency]:410~441MHz
[Power]:30dBm
[Distance]:10km
[Size]:92*67*30mm
[Interface]:RS232
[Introduction]:E95/E96-DTU (400SLxxx) is a wireless data transmission radio station that adopts military-grade LoRa modulation technology. It has a variety of transmission methods.

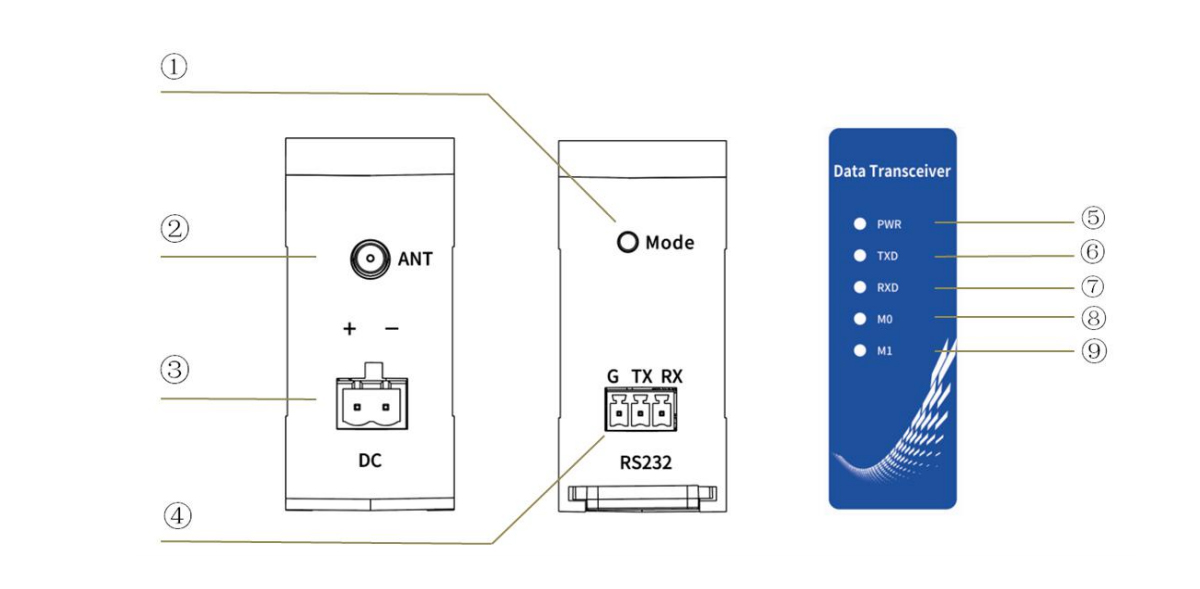

Serial number | Name | Features | Note |
---|---|---|---|
1 | Mode | Mode switch button | Working mode switching control |
2 | ANT | RF interface | SMA-K, external thread inner hole |
3 | DC | Power connector | DC power input port |
4 | RS232 | RS232 communication port | Standard RS232 interface |
5 | PWR | Power Indicator | Lights up when the power is on |
6 | TXD | Send indicator | Flashes when sending data |
7 | RXD | Receive indicator | Flashes when receiving data |
8 | MO | Mode indicator | Working mode indicator |
9 | M1 | Mode indicator | Working mode indicator |
