EA01-D NB IOT wireless data transmission module
[Transmission type]：NB-IoT
[Frequency band]：B3 B5 B8 frequency band
[Antenna]：IPEX
[Transmit power]：20dBm±2dB
[Size]：42*40*9mm
[Introduction]：EA01-D is an NB-IOT data transmission module developed by Ebyte for the purpose of realizing mutual data transmission between a serial device and network server merely by user simple setting. It supports B3, B5, and B8 frequency bands. The module is well-equipped with software and functions, covering most of the general application scenarios.

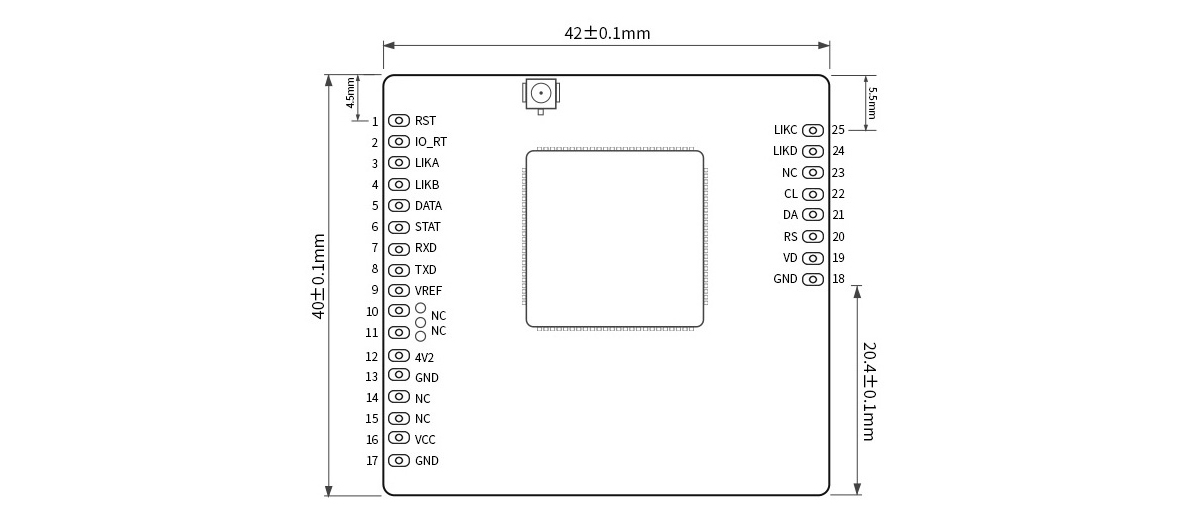

| No. | Pin | Description |
|---|---|---|
| 1 | RST | Reset, valid in low level |
| 2 | IO_RT | If low level lasts about 1 second, the factory settings will be restored and the automatic restart will take effect. |
| 3 | LIKA | Socket0 connection status indicator: corresponding to the onboard left LED light 1.High: Socket0 is successfully connected to the network server Low: Socket0 fails to be connected to the network server; |
| 4 | LIKB | Socket1 connection status indicator: corresponding to the onboard left LED light 2.High: Socket1 is successfully connected to the network server Low: Socket1 fails to be connected to the network server; |
| 5 | DATA | Socket data receiving and sending status indicator: When data is received by network or when data is received by serial port, the indicator light flashes, corresponding to the onboard left LED light 3. |
| 6 | NET | Device network status indicator: corresponding to the onboard right LED light 1.When the device is attaching to the network, it flashes rapidly;After the device is successfully attached to the network, it flashes slowly; |
| 7 | RXD | Data receiving indicator: default 3.3V, compatible with 5V communication level. |
| 8 | TXD | Data sending indicator: default 3.3V, compatible with 5V communication level. |
| 9 | VEF | Drive level power supply indicator: 5V level is input in order to achieve serial communication and LED indicator as 5V drive level. |
| 10,11,14,15,23,24,25 | NC | NC,unavailable |
| 12 | 4V2 | Lithium battery power supply indicator, power supply range: 3.6V~4.3V, type: 3.8V. Reverse pin connection and power supply together with VCC are prohibited. |
| 16 | VCC | DC power supply indicator: power supply range: 5V~18V. Reverse pin connection and power supply together with 4V2 are prohibited. |
| 19 | VD | External SIM card power supply indicator: NC is available if the onboard SIM card holder is used. |
| 20 | RS | External SIM card reset indicator: NC is available if the onboard SIM card holder is used. |
| 21 | DA | External SIM card data indicator: NC is available if the onboard SIM card holder is used. |
| 22 | CL | External SIM card signal indicator: NC is available if the onboard SIM card holder is used. |
| 13,17,18 | GND | Power Ground |
