Ebyte MA02-AXCX4040 Serial IO module RS232 module Networking module Support MODBUS
[Specifications]：4DI + 4DO
[Interface mode]：RS232
[Installation method]：rail
[Size]：145*90mm
[Introduction]：MA02-AXCX4040 supports the acquisition of 4-channel sensor switch input (DI), converted to serial port RS232) data transmission to configuration software or PLC. The serial port I/O networking module (also called "remote IO") that realizes the remote acquisition and control function by issuing commands through the serial port to control 4 relay switch outputs (DO).

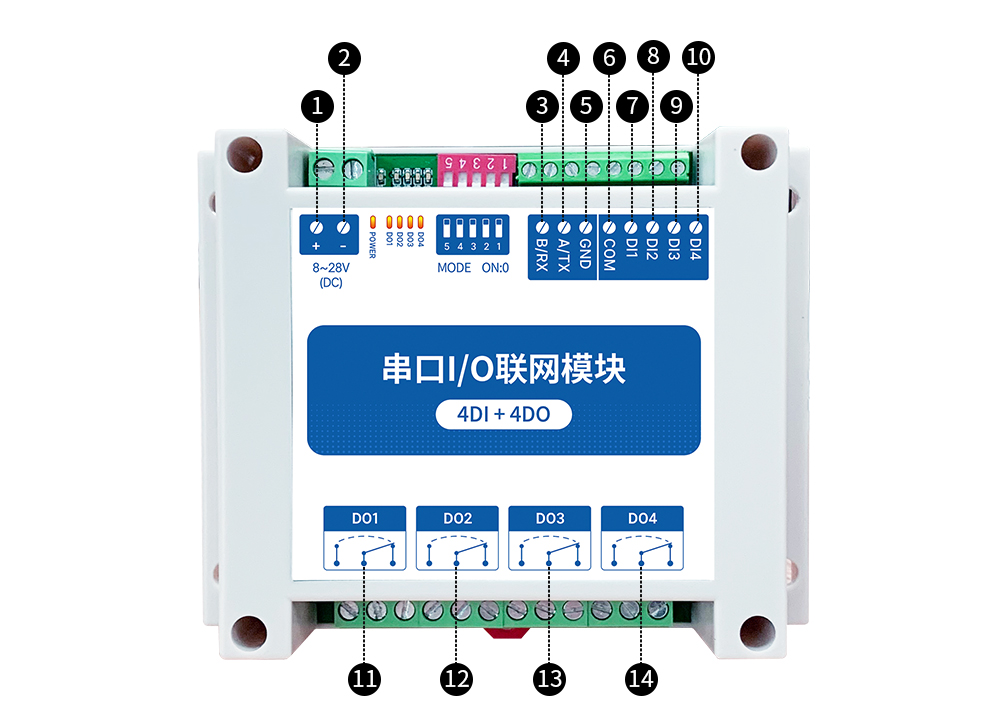

| Serial number | Pin | Pin direction | remarks |
|---|---|---|---|
| 1 | + | Power supply + (8～28V) | Suggest RVV 2*0.75 wire |
| 2 | ﹣ | Grounding-(8～28V) | Suggest RVV 2*0.75 wire |
| 3 | B/RX | RS485 corresponding to B | Recommend RVSP 3*0.5 wire |
| 4 | A/TX | RS485 corresponds to A | Recommend RVSP 3*0.5 wire |
| 5 | GND | Signal ground | Recommend RVSP 3*0.5 wire |
| 6 | COM | Input channel common | Recommend RVV 2*0.5 wire |
| 7 | DI1 | Switch input channel 1 | Recommend RVV 2*0.5 wire |
| 8 | DI2 | Switch input channel 2 | Recommend RVV 2*0.5 wire |
| 9 | DI3 | Switch input channel 3 | Recommend RVV 2*0.5 wire |
| 10 | DI4 | Switch input channel 4 | Recommend RVV 2*0.5 wire |
| 11 | DO1 | Switch output channel 1 | The relay has normally open and normally closed terminals |
| 12 | DO2 | Switch output channel 2 | The relay has normally open and normally closed terminals |
| 13 | DO3 | Switch output channel 3 | The relay has normally open and normally closed terminals |
| 14 | DO4 | Switch output channel 4 | The relay has normally open and normally closed terminals |
