Ebyte MA02-XACX0440 RS232 Industrial Level Serial port I/O networking module
[Specifications]：4AI+4DO
[Interface]：RS232
[Installation method]：positioning hole
[Size]：115*90*40mm
[Introduction]：MA02-XACX0440 supports the acquisition of 4-channel sensor analog input (AI), which is converted to serial port (RS232) and data is transmitted to configuration software or PLC. The serial port I/Onetworking module (also called "remote IO") that realizes the remote acquisition and control function by issuing commands through the serial port to control 4 relay switch outputs (DO).

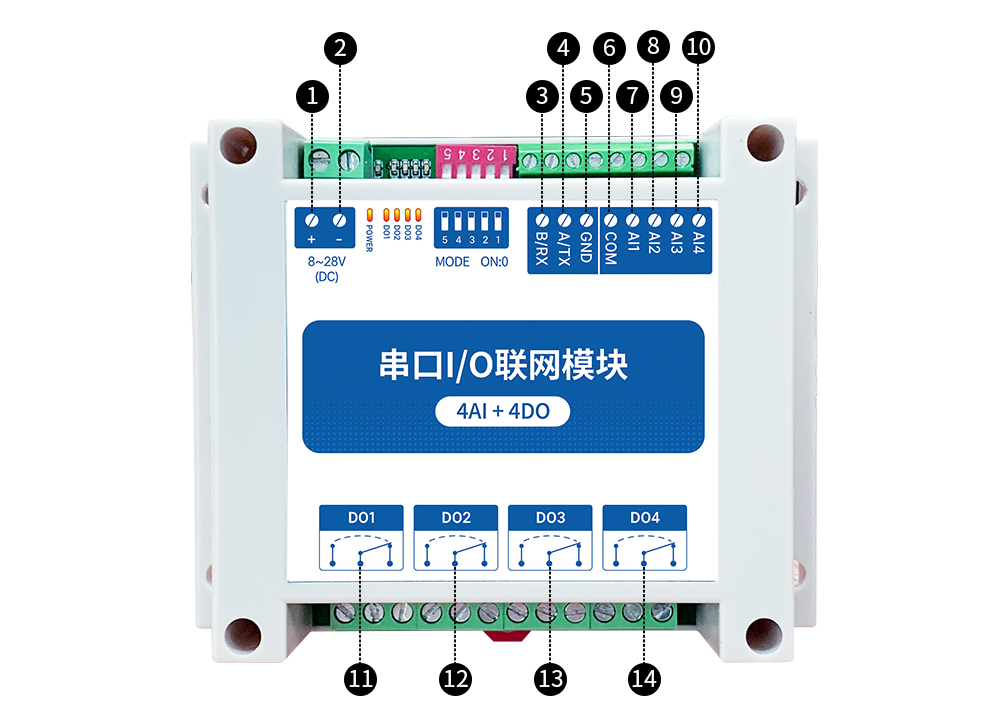

| Serial number | Pin | Pin direction | remarks |
|---|---|---|---|
| 1 | + | Power supply . . | It is recommended that RVV 2 x 0.75 wire |
| 2 | ﹣ | Ground - | It is recommended that RVV 2 x 0.75 wire |
| 3 | B/RX | RS485 corresponds to B | It is recommended that RVSP 3 x 0.5 wire |
| 4 | A/TX | RS485 corresponds to A | It is recommended that RVSP 3 x 0.5 wire |
| 5 | GND | The signal is grounded | It is recommended that RVSP 3 x 0.5 wire |
| 6 | WITH | Enter the common end of the channel | It is recommended that RVV 2 x 0.5 wire |
| 7 | AI1 | Analog input channel 1 | It is recommended that RVV 2 x 0.5 wire |
| 8 | AI2 | Simulate input channel 2 | It is recommended that RVV 2 x 0.5 wire |
| 9 | AI3 | Analog input channel 3 | It is recommended that RVV 2 x 0.5 wire |
| 10 | AI4 | Analog input channel 4 | It is recommended that RVV 2 x 0.5 wire |
| 11 | DO1 | Switch output channel 1 | Relays have normal open and normal closed ends |
| 12 | DO2 | Switch output channel 2 | Relays have normal open and normal closed ends |
| 13 | DO3 | Switch output channel 3 | Relays have normal open and normal closed ends |
| 14 | DO4 | Switch output channel 4 | Relays have normal open and normal closed ends |
